SHARKBITE UXL115450F 2 X 2IN FNPT CONNECTOR
MFR Part #: SB115450F
SKU #: 1109436
Brand: RWC | Sharkbite®
UPC: 697285000858

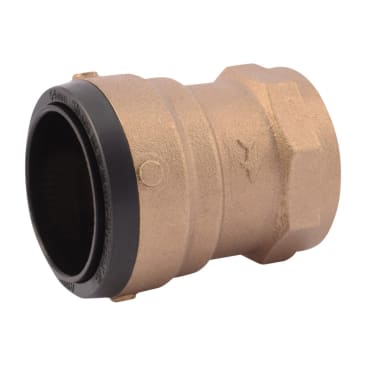

Sharkbite® SB115450F 2XL Large Diameter Female Connector, Adapter, 2 in Nominal, Push-Fit x FNPT End Style, Brass, Import
25 years Limited
For use in commercial and residential applications for potable water, hydronic heating, chilled water and general water distribution for irrigation
ASSE 1061 | CSA B125.3
Product Details
Attributes
Features
Resources
Sharkbite®, SB115450F, Female Connector, Large Diameter, Series: 2XL, Fitting/Connector: Adapter, 2 in Nominal, Push-Fit x FNPT End Style, 200 psi Pressure, 20 to 200 deg F, Brass, 3.42 in L Dimensions, Import
SharkBite® Large Diameter Female Connectors combine innovative push-to-connect design with a standard FNPT adapter on the opposite end. The push-fit end is compatible with Copper, PEX, CPVC, PE-RT and HDPE pipes and can be installed with no solder, glue, unions or tools required. These fittings are rated to 200 deg F and 200 psi. Large Diameter PEX Stiffeners are required when connecting to PEX tubing.
Connection Type:Push-Fit x FNPT
Country Of Origin:China
Fitting/Connector Type:Adapter
Nominal Size:2 in
Pressure Rating:200 psi
Dimensions:3.42 in L
Domestic/Import:Import
Material:Brass
Series:2XL
Temperature Rating:20 to 200 deg F
Type:Large Diameter
- Quick connect - No tools, soldering, clamps, unions or glue required, cut pipe square, de-burr to remove rough edges/debris, mark the pipe for correct depth and push to get a pressure ready connection every time
- Quick disconnect - Disconnect in seconds by sliding the de-mount tool down the pipe to engage the demount lugs and rotate clockwise to lock the open position leaving both hands free, you can now remove the pipe
- SAFE-recessed release collar - Commercial SharkBite® require a special demount tool and cannot be accidentally disconnected/released
- Extensive range including slip feature on couplings and tee's - When repairing or tapping into existing pipe with push-fittings you must be able to either move the fitting or the pipe to ensures the pipe is engaged fully into the fitting, with rigid pipe like copper the only way with push-fittings is to have a slip feature to allow easy installation when tapping into existing pipe
- Easy installation unlike the tool intensive connection methods there is no need to send multiple fitters to a job, SharkBite® commercial has been designed to be installed or removed by one person
- All fittings are lubricated for easy connection and by fitting the de-mount tool before engaging the pipe the force required can be reduced further
- Wet or dry - No waiting for copper tube to dry before soldering or glue to cure, SharkBite® makes an instant connection in seconds
- No tools - Unlike alterative tool intensive connections systems, SharkBite® has no special tooling required for installation
- No time - Fastest connection - cut-push-done, easy access to small or confined places, no flame - does not require fire permit or fire marshal
- No waste - Should you make an error or simply want to change your installation, no problem for SharkBite®, simply remove and re-use, (fitting used for repeated testing must not be used in any permanent application)
- Fittings cannot be disassembled - SharkBite® commercial fitting are factory assembled and components cannot be removed
- Long pipe engagement - Provides pipe support against lateral pipe forces
- Lead free (LF) dezincification resistance (DZR) brass: exceeds current no lead legislation - AB1953 or NSF372
- Suitable for underground installation subject to local code authorities/inspector
- Environmentally friendly: remove and re-use fittings no need to be scrapped, no heat is required for installation
- Design for use on ASTM B88 hard drawn and annealed copper type K, l or M, ASTM F876 and F877 pex and ASTM D2846/D2846M CPVC water pipe
- Chloramine resistant EDPM O-ring
- Copper tube liner
- 316 stainless steel grab ring
- Acetyl copolymer SharkBite® cartridge assembly
Product Details
Sharkbite®, SB115450F, Female Connector, Large Diameter, Series: 2XL, Fitting/Connector: Adapter, 2 in Nominal, Push-Fit x FNPT End Style, 200 psi Pressure, 20 to 200 deg F, Brass, 3.42 in L Dimensions, Import
SharkBite® Large Diameter Female Connectors combine innovative push-to-connect design with a standard FNPT adapter on the opposite end. The push-fit end is compatible with Copper, PEX, CPVC, PE-RT and HDPE pipes and can be installed with no solder, glue, unions or tools required. These fittings are rated to 200 deg F and 200 psi. Large Diameter PEX Stiffeners are required when connecting to PEX tubing.
Attributes
Connection Type: Push-Fit x FNPT
Country Of Origin: China
Fitting/Connector Type: Adapter
Nominal Size: 2 in
Pressure Rating: 200 psi
Dimensions: 3.42 in L
Domestic/Import: Import
Material: Brass
Series: 2XL
Temperature Rating: 20 to 200 deg F
Type: Large Diameter
Features
- Quick connect - No tools, soldering, clamps, unions or glue required, cut pipe square, de-burr to remove rough edges/debris, mark the pipe for correct depth and push to get a pressure ready connection every time
- Quick disconnect - Disconnect in seconds by sliding the de-mount tool down the pipe to engage the demount lugs and rotate clockwise to lock the open position leaving both hands free, you can now remove the pipe
- SAFE-recessed release collar - Commercial SharkBite® require a special demount tool and cannot be accidentally disconnected/released
- Extensive range including slip feature on couplings and tee's - When repairing or tapping into existing pipe with push-fittings you must be able to either move the fitting or the pipe to ensures the pipe is engaged fully into the fitting, with rigid pipe like copper the only way with push-fittings is to have a slip feature to allow easy installation when tapping into existing pipe
- Easy installation unlike the tool intensive connection methods there is no need to send multiple fitters to a job, SharkBite® commercial has been designed to be installed or removed by one person
- All fittings are lubricated for easy connection and by fitting the de-mount tool before engaging the pipe the force required can be reduced further
- Wet or dry - No waiting for copper tube to dry before soldering or glue to cure, SharkBite® makes an instant connection in seconds
- No tools - Unlike alterative tool intensive connections systems, SharkBite® has no special tooling required for installation
- No time - Fastest connection - cut-push-done, easy access to small or confined places, no flame - does not require fire permit or fire marshal
- No waste - Should you make an error or simply want to change your installation, no problem for SharkBite®, simply remove and re-use, (fitting used for repeated testing must not be used in any permanent application)
- Fittings cannot be disassembled - SharkBite® commercial fitting are factory assembled and components cannot be removed
- Long pipe engagement - Provides pipe support against lateral pipe forces
- Lead free (LF) dezincification resistance (DZR) brass: exceeds current no lead legislation - AB1953 or NSF372
- Suitable for underground installation subject to local code authorities/inspector
- Environmentally friendly: remove and re-use fittings no need to be scrapped, no heat is required for installation
- Design for use on ASTM B88 hard drawn and annealed copper type K, l or M, ASTM F876 and F877 pex and ASTM D2846/D2846M CPVC water pipe
- Chloramine resistant EDPM O-ring
- Copper tube liner
- 316 stainless steel grab ring
- Acetyl copolymer SharkBite® cartridge assembly
