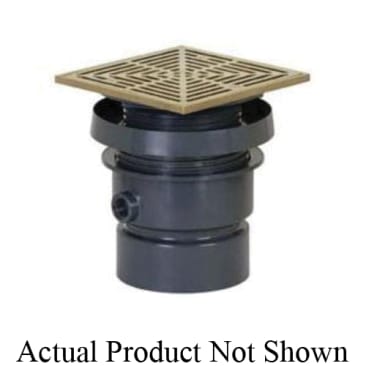

SIOUX CHIEF 832-4ASQ Image 1

SIOUX CHIEF 832-4ASQ FINISH LINE 4 PVC DRAIN WITH 6 STAINLESS STEEL SQUARE STRAINER

MFR Part #: 832-4ASQ
SKU #: 1080820
Brand: Sioux Chief
UPC: 739236381699
Sioux Chief FinishLine™ 832-4ASQ Adjustable Floor Drain Complete Assembly With Ring and Strainer, 4 in Outlet, Hub Connection, 7 in, ABS Drain
For pedestrian traffic areas
ASME A112.6.3-01

Sioux Chief FinishLine™ Floor Drain Complete Assembly, Adjustable, 4 in Outlet, Hub, ABS Drain, 7 in Grid

Sioux Chief 832 series FinishLine™ adjustable floor drain shall be used where necessary in drainage systems. Floor drain shall allow adjustment before and after the concrete pour. Strainer shall meet applicable load requirements for intended use. Trap primer port shall be threaded 1/2 in FIP for optional connection. Designed in accordance with ASME A112.6.3-2001.

Product Details

Sioux Chief FinishLine™ Floor Drain Complete Assembly, Adjustable, 4 in Outlet, Hub, ABS Drain, 7 in Grid

Sioux Chief 832 series FinishLine™ adjustable floor drain shall be used where necessary in drainage systems. Floor drain shall allow adjustment before and after the concrete pour. Strainer shall meet applicable load requirements for intended use. Trap primer port shall be threaded 1/2 in FIP for optional connection. Designed in accordance with ASME A112.6.3-2001.

Attributes

Country Of Origin: China
Outlet Size: 4 in
Connection Type: Hub
Drain Material: ABS
Grid Size: 7 in
Series: 832
Type: Adjustable

Features

  • Patent #7,735,512
  • Adjustable after the pour
  • ABS/PVC base adapter, ABS coring sleeve and head adapter
  • Sch 40 hub connection
  • 4-1/2 in base adapter height
  • Trap primer port 1/2 in FIP thread, for knockout connection
  • Stainless steel square ring and strainer
  • 1000 lb strainer load rating for stainless steel (light duty heel proof)
  • 16.4 sq-in square nickel bronze or stainless steel strainer free area

Resources

Catalog
Instruction/Installation Manual
Owners/User Manual
Specification Sheet
