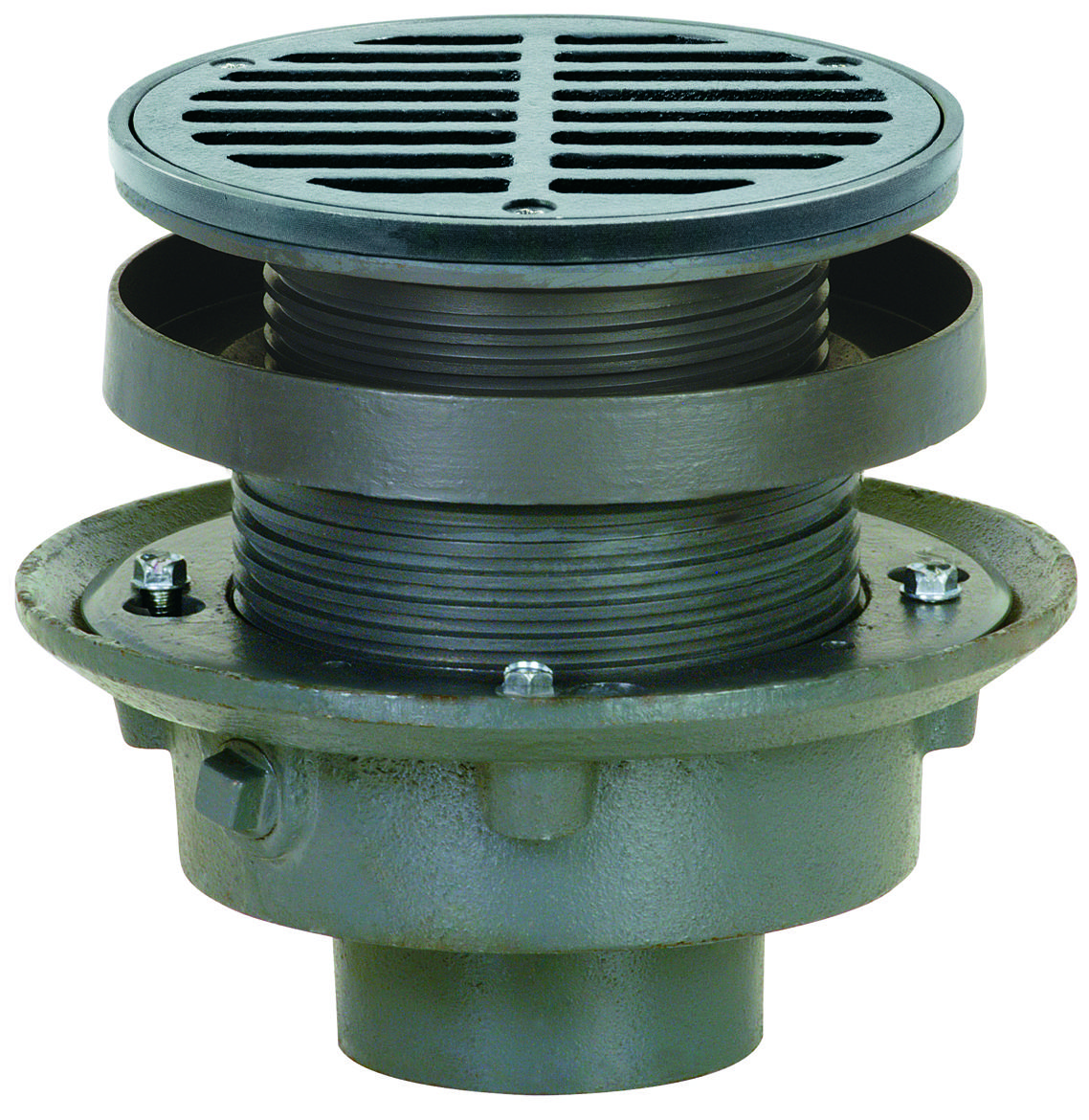

SIOUX CHIEF 833-22DIR Image 1

SIOUX CHIEF 833-22DIR DRAIN NO-HUB 2 DUCTILE IRON DRAIN WITH 6 DUCTILE IRON ROUND STR

MFR Part #: 833-22DIR
SKU #: 1080875
Brand: Sioux Chief
UPC: 739236376169
Sioux Chief FinishLine™ 833-22DIR Adjustable Flashing Drain Complete Assembly With Ring and Strainer, 2 in Outlet, 6-1/2 in, Cast Iron Drain, Import
ASME A112.6.3-2001

Sioux Chief FinishLine™ Flashing Drain Complete Assembly, Adjustable, 2 in Outlet, Cast Iron Drain, 6-1/2 in Grid, Import

Sioux Chief 833 series FinishLine™ adjustable above-grade flashing drain shall be used where necessary in drainage systems. Flashing drain shall allow adjustment of 1-1/4 in before the concrete pour, and 1-1/4 in after the concrete pour. Flashing drain shall have an invertible flashing collar and cast iron base adapter. Strainer shall meet applicable load requirements for intended use. Trap primer port shall be threaded 1/2 in FIP for optional connection. Designed in accordance with ASME A112.6.3-2001.

Product Details

Sioux Chief FinishLine™ Flashing Drain Complete Assembly, Adjustable, 2 in Outlet, Cast Iron Drain, 6-1/2 in Grid, Import

Sioux Chief 833 series FinishLine™ adjustable above-grade flashing drain shall be used where necessary in drainage systems. Flashing drain shall allow adjustment of 1-1/4 in before the concrete pour, and 1-1/4 in after the concrete pour. Flashing drain shall have an invertible flashing collar and cast iron base adapter. Strainer shall meet applicable load requirements for intended use. Trap primer port shall be threaded 1/2 in FIP for optional connection. Designed in accordance with ASME A112.6.3-2001.

Attributes

Country Of Origin: China
Outlet Size: 2 in
Domestic/Import: Import
Drain Material: Cast Iron
Grid Size: 6-1/2 in
Series: 833
Type: Adjustable

Features

  • Patent no 7,735,512
  • Adjustable after the pour
  • Cast iron base adapter with ductile iron clamping collar, coring sleeve and head adapter
  • No hub connection
  • 8-1/2 in flange dia, 4 in base adapter H, 5 to 7 in pre-pour adjustable H
  • Large top
  • 13.25 sq in round ductile iron strainer free areas
  • 6000 lb strainer load rating for ductile iron (heavy duty
  • Ductile iron round ring and strainer
  • For heavy-duty applications
