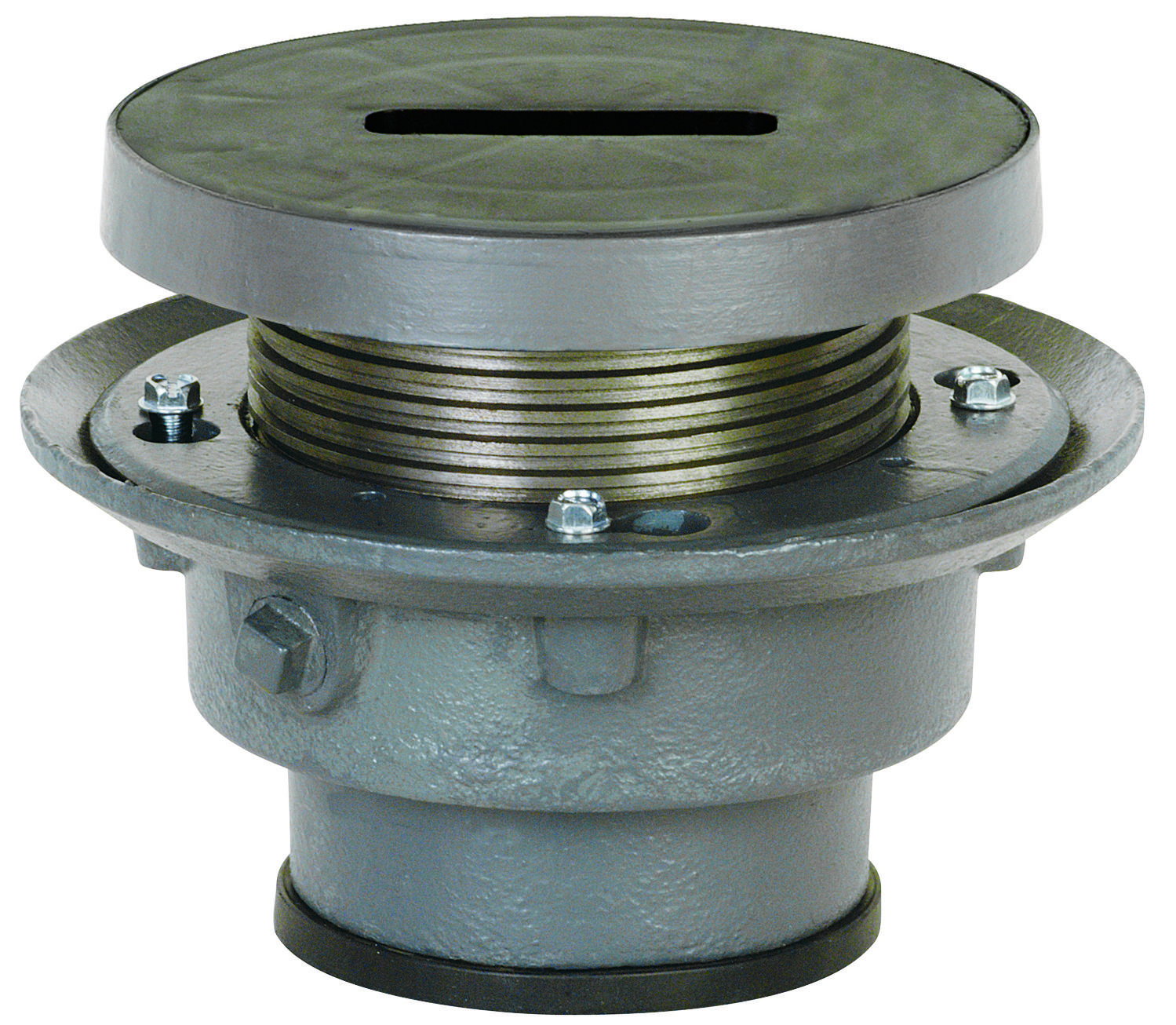

SIOUX CHIEF 833-63DF FINISH LINE 3 PUSH-JOINT DUCTILE IRON DRAIN ROUGH-IN
Product Details
Attributes
Features
Resources
Sioux Chief FinishLine™ Rough-In Flashing Drain, Adjustable, Series: 833, 3 in Outlet, Compression Gasket, Cast Iron Drain, Import
Sioux Chief 833 series FinishLine™ adjustable above-grade flashing drain shall be used where necessary in drainage systems. Flashing drain shall allow adjustment of 1-1/4 in before the concrete pour, and 1-1/4 in after the concrete pour. Flashing drain shall have an invertible flashing collar and cast iron base adapter. Strainer shall meet applicable load requirements for intended use. Trap primer port shall be threaded 1/2 in FIP for optional connection. Designed in accordance with ASME A112.6.3-2001.
- Patent no 7,735,512
- Adjustable after the pour
- 8-1/2 in flange dia, 4 in base adapter H, 5 to 7 in pre-pour adjustable H
- Large top
- Mixed-material models, with poly tops and cast iron bases offer cost-effective alternatives to all cast iron model
Product Details
Sioux Chief FinishLine™ Rough-In Flashing Drain, Adjustable, Series: 833, 3 in Outlet, Compression Gasket, Cast Iron Drain, Import
Sioux Chief 833 series FinishLine™ adjustable above-grade flashing drain shall be used where necessary in drainage systems. Flashing drain shall allow adjustment of 1-1/4 in before the concrete pour, and 1-1/4 in after the concrete pour. Flashing drain shall have an invertible flashing collar and cast iron base adapter. Strainer shall meet applicable load requirements for intended use. Trap primer port shall be threaded 1/2 in FIP for optional connection. Designed in accordance with ASME A112.6.3-2001.
Attributes
Features
- Patent no 7,735,512
- Adjustable after the pour
- 8-1/2 in flange dia, 4 in base adapter H, 5 to 7 in pre-pour adjustable H
- Large top
- Mixed-material models, with poly tops and cast iron bases offer cost-effective alternatives to all cast iron model
