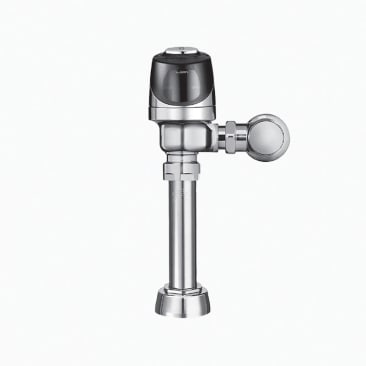

SLOAN 3250289 Image 1

SLOAN 3250289 G2 8111-1.28 OPTIMA BATT OP FLUSHOMETER

MFR Part #: 3250289
SKU #: 1114885
Brand: Sloan®
UPC: 671254342460
Sloan® 3250289 8111 Single-Flush Sensor Exposed Flushometer, G2 Optima Plus®, Battery, 1.28 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
3 Years Limited
(4) Size AA Alkaline Batteries
ADA Compliant | ASSE Valve | BAA Compliant | cUPC Listed | cUPC Green Certified | Satisfies LEED Credits | WaterSense Listed

Sloan® Sensor Exposed Flushometer, Single-Flush, Series: 8111, G2 Optima Plus® Collection, Water Closet Fixture, Battery Power Source, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic

Exposed, Battery Powered, Sensor Activated Optima Plus® Model Water Closet Flushometer for floor mounted or wall hung top spud bowls.

Product Details

Sloan® Sensor Exposed Flushometer, Single-Flush, Series: 8111, G2 Optima Plus® Collection, Water Closet Fixture, Battery Power Source, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic

Exposed, Battery Powered, Sensor Activated Optima Plus® Model Water Closet Flushometer for floor mounted or wall hung top spud bowls.

Attributes

Country Of Origin: US
Flush Rate: 1.28 gpf
Inlet Size: 1 in IPS
Power Source: Battery
Type: Single-Flush
Collection: G2 Optima Plus®
Connection Location: Top Spud
Domestic/Import: Domestic
Finish/Color: Polished Chrome
Fixture Type: Water Closet
Material: Semi-Red Brass
Pressure Rating: 15 to 80 psi
Rough-In Size: 11-1/2 in
Sensor Range: 22 to 42 in
Series: 8111
Spud Coupling: 1-1/2 in
Valve Design: Diaphragm

Features

  • Automatically operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
  • User friendly 3 sec flush delay and Courtesy Flush® override button
  • High copper, low zinc brass castings for dezincification resistance
  • Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass

Resources

Instruction/Installation Manual
Line Drawing
Specification Sheet
