SLOAN 3370430 G2 8186-0.5 BATT OP URINAL FLUSHOMETER 0.5GPF
MFR Part #: 3250424
SKU #: 1162717
Brand: Sloan®
UPC: 671254266919

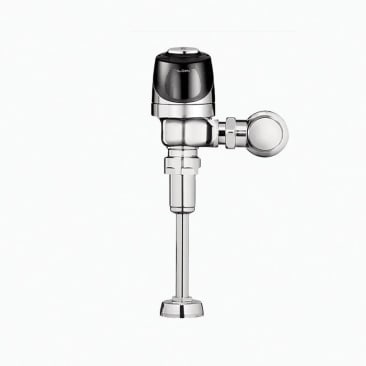

Sloan® 3250424 8186 Single-Flush Sensor Exposed Flushometer, G2 Optima Plus®, Battery, 0.5 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
3 Years Limited
(4) Size AA Alkaline Batteries
ADA Compliant | ASSE Valve | BAA Compliant | cUPC Listed | cUPC Green Certified | Satisfies LEED Credits | WaterSense Listed
Product Details
Attributes
Features
Resources
Sloan® Sensor Exposed Flushometer, Single-Flush, Series: 8186, G2 Optima Plus® Collection, Urinal Fixture, Battery Power Source, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 30 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Country Of Origin:
US
Fixture Type:
Urinal
Flush Rate:
.5 gpf
Inlet Size:
3/4 in IPS
Power Source:
Battery
Type:
Single-Flush
Collection:
G2 Optima Plus®
Connection Location:
Top Spud
Domestic/Import:
Domestic
Finish/Color:
Polished Chrome
Material:
Semi-Red Brass
Pressure Rating:
15 to 80 psi
Rough-In Size:
11-1/2 in
Sensor Range:
15 to 30 in
Series:
8186
Spud Coupling:
3/4 in
Valve Design:
Diaphragm
- ADA compliant flushometer automatically operates by means of a infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- High copper, low zinc brass castings for dezincification resistance
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
Product Details
Sloan® Sensor Exposed Flushometer, Single-Flush, Series: 8186, G2 Optima Plus® Collection, Urinal Fixture, Battery Power Source, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 30 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Attributes
Country Of Origin: US
Fixture Type: Urinal
Flush Rate: .5 gpf
Inlet Size: 3/4 in IPS
Power Source: Battery
Type: Single-Flush
Collection: G2 Optima Plus®
Connection Location: Top Spud
Domestic/Import: Domestic
Finish/Color: Polished Chrome
Material: Semi-Red Brass
Pressure Rating: 15 to 80 psi
Rough-In Size: 11-1/2 in
Sensor Range: 15 to 30 in
Series: 8186
Spud Coupling: 3/4 in
Valve Design: Diaphragm
Features
- ADA compliant flushometer automatically operates by means of a infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- High copper, low zinc brass castings for dezincification resistance
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
