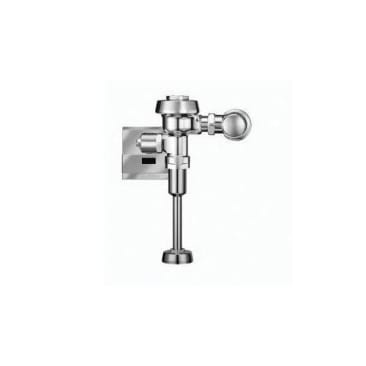

SLOAN 3452630 ROYAL 186-0.13 ESS ELEC URINAL FLUSHOMETER
MFR Part #: 3452630
SKU #: 1162714
Brand: Sloan®
UPC: 671254349674
Sloan® 3452630 186 ESS Single-Flush Sensor Flushometer, 0.125 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
IAPMO Listed to meet or exceed ASME A112.19.2 Standards | Meets ADA Guidelines and ANSI A117.1 Requirements When Installed Accordingly | Water Sense Listed by EPA that Qualifies for Most Rebate Programs | BAA Compliant | cUPC Listed | CalGreen Compliant | California Energy Commission | Satisfies LEED Credits | UL Listed
Product Details
Attributes
Features
Resources
Sloan®, 3452630, Sensor Flushometer, Single-Flush, Series: 186 ESS, Urinal Fixture, 0.125 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top, 15 to 30 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Country Of Origin:
US
Fixture Type:
Urinal
Flush Rate:
.125 gpf
Inlet Size:
3/4 in IPS
Power Source:
Hardwired
Type:
Single-Flush
Connection Location:
Top
Domestic/Import:
Domestic
Finish/Color:
Polished Chrome
Material:
Semi-Red Brass
Pressure Rating:
15 to 80 psi
Rough-In Size:
11-1/2 in
Sensor Range:
15 to 30 in
Series:
186 ESS
Spud Coupling:
3/4 in
Valve Design:
Diaphragm
- Sweat solder adapter with cover tube and cast wall flange with set screw
- OPTIMA® EL-1500 self-adaptive infrared sensor with indicator light
- Non-hold-open integral solenoid operator, fixed metering bypass and no external volume adjustment to ensure water conservation
- High back pressure vacuum breaker flush connection with one piece bottom hex coupling nut,spud coupling and flange for 3/4 in top spud
- Stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
- 3/4 in IPS screwdriver Bak-Chek® angle stop with vandal resistant stop cap
- Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
Product Details
Sloan®, 3452630, Sensor Flushometer, Single-Flush, Series: 186 ESS, Urinal Fixture, 0.125 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top, 15 to 30 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Attributes
Country Of Origin: US
Fixture Type: Urinal
Flush Rate: .125 gpf
Inlet Size: 3/4 in IPS
Power Source: Hardwired
Type: Single-Flush
Connection Location: Top
Domestic/Import: Domestic
Finish/Color: Polished Chrome
Material: Semi-Red Brass
Pressure Rating: 15 to 80 psi
Rough-In Size: 11-1/2 in
Sensor Range: 15 to 30 in
Series: 186 ESS
Spud Coupling: 3/4 in
Valve Design: Diaphragm
Features
- Sweat solder adapter with cover tube and cast wall flange with set screw
- OPTIMA® EL-1500 self-adaptive infrared sensor with indicator light
- Non-hold-open integral solenoid operator, fixed metering bypass and no external volume adjustment to ensure water conservation
- High back pressure vacuum breaker flush connection with one piece bottom hex coupling nut,spud coupling and flange for 3/4 in top spud
- Stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
- 3/4 in IPS screwdriver Bak-Chek® angle stop with vandal resistant stop cap
- Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
