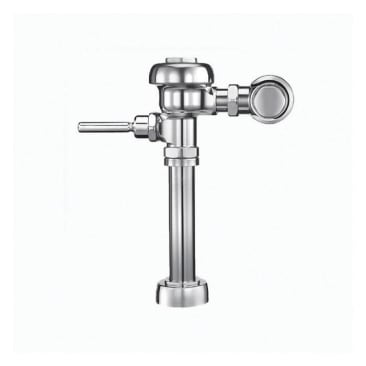

SLOAN 3780018 111-1.28 DFB WC FLUSHOMETER 1.28GPF
MFR Part #: 3780018
SKU #: 1162706
Brand: Sloan®
UPC: 671254356580
Sloan® 3780018 111 Single-Flush Flushometer, 1.28 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 10 to 100 psi Pressure, Polished Chrome, Domestic
For Use With Floor Mounted or Wall Hung Top Spud Bowls
ADA Compliant | ASSE 1037 | ANSI/ASME 112.19.6 | cUPC Listed | Military Specification V-2919
Product Details
Attributes
Features
Resources
Sloan® Flushometer, Single-Flush, Series: 111, Water Closet Fixture, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 10 to 100 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Country Of Origin:
US
Fixture Type:
Water Closet
Flush Rate:
1.28 gpf
Inlet Size:
1 in IPS
Type:
Single-Flush
Connection Location:
Top Spud
Domestic/Import:
Domestic
Finish/Color:
Polished Chrome
Handle Type:
Non-Hold Open Oscillating
Material:
Semi-Red Brass
Pressure Rating:
10 to 100 psi
Rough-In Size:
11-1/2 in
Series:
111
Spud Coupling:
1-1/2 in
Valve Design:
Diaphragm
- Flush volumes start as low as 1.6 gpf/6.0 Lpf
- Water conservation is aided by the ADA Compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece accommodates different height requirements
- High chloramine resistant PERMEX® synthetic rubber diaphragm with linear filtered by-pass and vortex cleansing action
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
Product Details
Sloan® Flushometer, Single-Flush, Series: 111, Water Closet Fixture, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 10 to 100 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Attributes
Country Of Origin: US
Fixture Type: Water Closet
Flush Rate: 1.28 gpf
Inlet Size: 1 in IPS
Type: Single-Flush
Connection Location: Top Spud
Domestic/Import: Domestic
Finish/Color: Polished Chrome
Handle Type: Non-Hold Open Oscillating
Material: Semi-Red Brass
Pressure Rating: 10 to 100 psi
Rough-In Size: 11-1/2 in
Series: 111
Spud Coupling: 1-1/2 in
Valve Design: Diaphragm
Features
- Flush volumes start as low as 1.6 gpf/6.0 Lpf
- Water conservation is aided by the ADA Compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece accommodates different height requirements
- High chloramine resistant PERMEX® synthetic rubber diaphragm with linear filtered by-pass and vortex cleansing action
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
