SLOAN 3982604 FLUSHVALVE
MFR Part #: 3982604
SKU #: 1202929
Brand: Sloan®
UPC: 671254396876

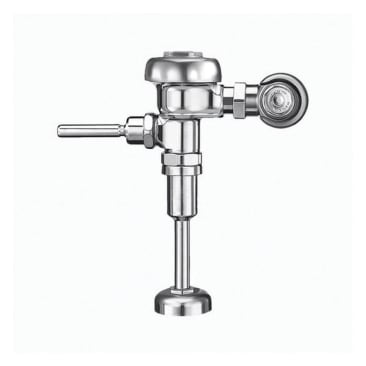

Sloan® 3982604 186 Single-Flush Manual Exposed Flushometer, 0.125 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
ADA Compliant | BAA Compliant | cUPC Listed | cUPC Green Certified | Satisfies LEED Credits | WaterSense Listed | Valve Shall be in Compliance with the Applicable Sections of ASSE 1037
Product Details
Attributes
Features
Resources
Sloan®, 3982604, Manual Exposed Flushometer, Single-Flush, Series: 186, Urinal Fixture, 0.125 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Country Of Origin:US
Flush Rate:.125 gpf
Inlet Size:3/4 in IPS
Type:Single-Flush
Connection Location:Top Spud
Domestic/Import:Domestic
Finish/Color:Polished Chrome
Fixture Type:Urinal
Handle Type:Non-Hold Open Oscillating
Material:Semi-Red Brass
Pressure Rating:15 to 80 psi
Rough-In Size:11-1/2 in
Series:186
Spud Coupling:3/4 in
Valve Design:Diaphragm
- Flush volumes start as low as 0.5 gpf/1.9 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Low consumption flush accuracy controlled by Para-Flo™ technology
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for red brass
Product Details
Sloan®, 3982604, Manual Exposed Flushometer, Single-Flush, Series: 186, Urinal Fixture, 0.125 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Attributes
Country Of Origin: US
Flush Rate: .125 gpf
Inlet Size: 3/4 in IPS
Type: Single-Flush
Connection Location: Top Spud
Domestic/Import: Domestic
Finish/Color: Polished Chrome
Fixture Type: Urinal
Handle Type: Non-Hold Open Oscillating
Material: Semi-Red Brass
Pressure Rating: 15 to 80 psi
Rough-In Size: 11-1/2 in
Series: 186
Spud Coupling: 3/4 in
Valve Design: Diaphragm
Features
- Flush volumes start as low as 0.5 gpf/1.9 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Low consumption flush accuracy controlled by Para-Flo™ technology
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for red brass
