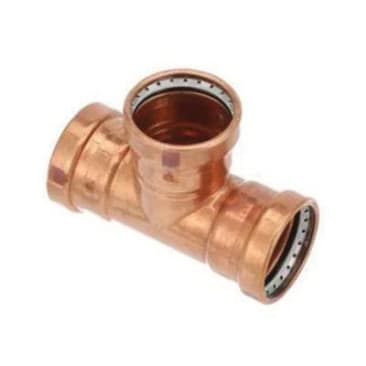

VIEGA 22312 Image 1

VIEGA 22312 PROPRESS 4INX3/4IN PRSXPRSXPRS COPPER PRESS TEE

MFR Part #: 22312
SKU #: 1300115
Brand: ProPress®
UPC: 400052142718
Viega ProPress® 0918XL Series 22312 Tube Tee, 4 in Press x 4 in Press x 3/4 in Press, Copper
50 Year
EPDM Sealing Element
Chilled Water, Compressed Air, Ethanol, Fire Sprinkler, Hot and Cold Potable Water, Hydronic Heating, Low Pressure Steam, Non-Medical Gases, Rain Water or Gray Water, Residential Steam and Vacuum Applications
ABS Approved|ANSI 61/372|ASME B16.51/B31.1/B31.3/B31.9|CSA Certified|FM Class 1920|IAPMO PS 117|ICC-ES IC1002|NFPA 13/13D/13R|NSF Certified|UL Listed|UNS C12200

Viega Tube Tee, 0918XL Series, Tee Fitting, Connection Size 1: 4 in, Connection Type 1: Press, Connection Size 2: 4 in, Connection Type 2: Press, Connection Size 3: 3/4 in, Connection Type 3: Press, Press|Press|Press Connection, Copper, Material Construction: Copper, For Use With: Viega ProPress® ASTM B88 and ASTM B75 Tubes, 6.89 in L x 5.76 in W x 4.69 in H, 300 psi, 0 to 250 deg F

Viega ProPress® is the trusted copper press joining solution. Since its introduction in 1999, it has reduced overall job costs, saved time and increased reliability on jobsites across the globe. Viega is the only company with Smart Connect® technology, which provides installers added confidence in their ability to ensure secure connections. With system matched tools, rings and jaws, press connections are made in seconds, making Viega ProPress® suitable for virtually any type of project.

Product Details

Viega Tube Tee, 0918XL Series, Tee Fitting, Connection Size 1: 4 in, Connection Type 1: Press, Connection Size 2: 4 in, Connection Type 2: Press, Connection Size 3: 3/4 in, Connection Type 3: Press, Press|Press|Press Connection, Copper, Material Construction: Copper, For Use With: Viega ProPress® ASTM B88 and ASTM B75 Tubes, 6.89 in L x 5.76 in W x 4.69 in H, 300 psi, 0 to 250 deg F

Viega ProPress® is the trusted copper press joining solution. Since its introduction in 1999, it has reduced overall job costs, saved time and increased reliability on jobsites across the globe. Viega is the only company with Smart Connect® technology, which provides installers added confidence in their ability to ensure secure connections. With system matched tools, rings and jaws, press connections are made in seconds, making Viega ProPress® suitable for virtually any type of project.

Attributes

Connection Type: Press|Press|Press
Connection Size 1: 4 in
Connection Size 2: 4 in
Connection Size 3: 3/4 in
Connection Type 1: Press
Connection Type 2: Press
Connection Type 3: Press
Dimensions: 6.89 in L x 5.76 in W x 4.69 in H
Fitting Type: Tee
For Use With: Viega ProPress® ASTM B88 and ASTM B75 Tubes
Material: Copper
Material Construction: Copper
Pressure Rating: 300 psi
Series: 0918XL Series
Temperature Rating: 0 to 250 deg F

Features

  • Smart Connect® technology
  • Allows identification of an unpressed fitting during pressure testing
