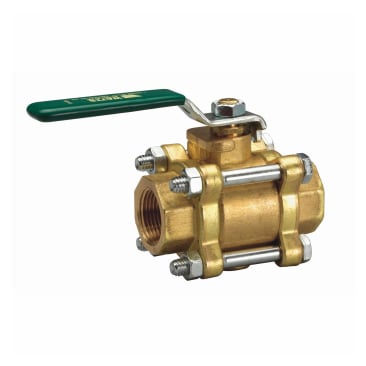

WATTS 0123245 LFB6800-LL 1/2 IP 3PC BALL VALVE WITH LOCKING LEVER
Product Details
Attributes
Features
Resources
WATTS®, 0123245, Ball Valve, 3-Piece, Series: LFB6800, 1/2 in Nominal, NPT End Style, 600 psi Pressure, 0 to 450 deg F, Full Port, Media: Water, 1/2 in Orifice, Latch Lock Handle Actuator, 316 Stainless Steel Ball, 2-3/8 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Brass Body, 316 Stainless Steel Stem and PTFE Durafill® Seat Trim, PTFE Softgoods, Domestic
This 1/2 inch 3-piece full port lead free ball valve is used in commercial and industrial applications. It features an in-line maintenance design that offers serviceability of all operating parts without disturbing the piping system. The full port orifice ensures maximum flow capacity. This valve consists of a lead free body with threaded NPT end connections, reinforced PTFE Durafill (R) seat, chrome plated lead free brass ball, and blow-out proof stem provides maximum safety and highest operating pressure/temperature limits. This valve also includes a Latch-Lok handle for maximum safety.
- Lead free copper silicon alloy body
- Standard actuator mounting pad
- Vinyl insulator on heavy duty, zinc plated carbon steel handles
- Low operating torque
- PTFE stem packing seal/thrust bearing
- Lead free construction
- Blowout proof pressure retaining stem
- Threaded NPT end connections
Product Details
WATTS®, 0123245, Ball Valve, 3-Piece, Series: LFB6800, 1/2 in Nominal, NPT End Style, 600 psi Pressure, 0 to 450 deg F, Full Port, Media: Water, 1/2 in Orifice, Latch Lock Handle Actuator, 316 Stainless Steel Ball, 2-3/8 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Brass Body, 316 Stainless Steel Stem and PTFE Durafill® Seat Trim, PTFE Softgoods, Domestic
This 1/2 inch 3-piece full port lead free ball valve is used in commercial and industrial applications. It features an in-line maintenance design that offers serviceability of all operating parts without disturbing the piping system. The full port orifice ensures maximum flow capacity. This valve consists of a lead free body with threaded NPT end connections, reinforced PTFE Durafill (R) seat, chrome plated lead free brass ball, and blow-out proof stem provides maximum safety and highest operating pressure/temperature limits. This valve also includes a Latch-Lok handle for maximum safety.
Attributes
Features
- Lead free copper silicon alloy body
- Standard actuator mounting pad
- Vinyl insulator on heavy duty, zinc plated carbon steel handles
- Low operating torque
- PTFE stem packing seal/thrust bearing
- Lead free construction
- Blowout proof pressure retaining stem
- Threaded NPT end connections
