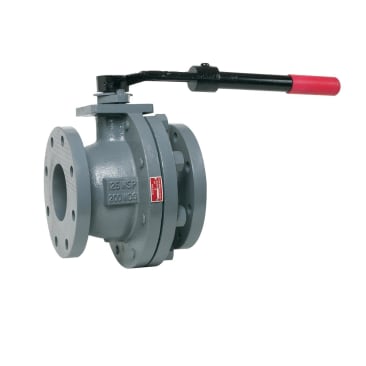

WATTS 0822653 Image 2

WATTS 0822653 G4000-M1 4 FLG STAINLESS STEEL BALL VALVE

MFR Part #: 0822653
SKU #: 1283247
Brand: WATTS®
UPC: 098268908862
WATTS® 0822653 2-Piece Ball Valve, 4 in Nominal, Flanged End Style, Cast Iron Body, Full Port, Import
1 year
Commercial and Industrial Applications
ASTM A-351 Ball | ASTM A-126 Class B Body | ASTM A439 Handle

WATTS® Ball Valve, 2-Piece, 4 in Nominal, Flanged, 200 psi CWP, 353 deg F, Full Port, 4 in Orifice, 304 Stainless Steel Ball, 9 in Inlet to Outlet Length, Cast Iron Body, 304 Stainless Steel Stem and PTFE Seat Trim, Import

This 2-Piece Full Port Cast Iron Flanged Ball Valve, 4 IN Watts Model G4000M1, is used in commercial HVAC and steam applications. It features a 125 psi steam rating, stainless steel ball and stem, PTFE seat and packing, a steel-plated stop plate, and a ductile iron handle. It has a quarter turn operation, positive shutoff, and is ideal in replacing old cast iron gate valves.

Product Details

WATTS® Ball Valve, 2-Piece, 4 in Nominal, Flanged, 200 psi CWP, 353 deg F, Full Port, 4 in Orifice, 304 Stainless Steel Ball, 9 in Inlet to Outlet Length, Cast Iron Body, 304 Stainless Steel Stem and PTFE Seat Trim, Import

This 2-Piece Full Port Cast Iron Flanged Ball Valve, 4 IN Watts Model G4000M1, is used in commercial HVAC and steam applications. It features a 125 psi steam rating, stainless steel ball and stem, PTFE seat and packing, a steel-plated stop plate, and a ductile iron handle. It has a quarter turn operation, positive shutoff, and is ideal in replacing old cast iron gate valves.

Attributes

Country Of Origin: China
Inlet to Outlet Length: 9 in
Nominal Size: 4 in
Pressure Rating: 200 psi CWP
Ball Material: 304 Stainless Steel
Body Material: Cast Iron
Domestic/Import: Import
End Style: Flanged
Orifice Size: 4 in
Port Type: Full
Series: G4000-M1
Temperature Rating: 353 deg F
Trim Material: 304 Stainless Steel Stem and PTFE Seat
Type: 2-Piece

Features

  • Positive shut-off
  • 125 Psi working steam pressure

Resources

Instruction/Installation Manual
Specification Sheet
