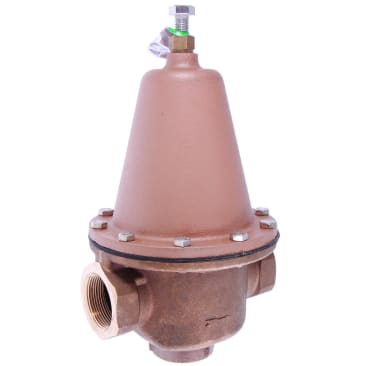

WATTS 88009222 LF223-HP 1-1/2 IP 50-125PSI HIGH CAPACITY LEAD FREE WATER PRESSURE REDUCING VALVE
Product Details
Attributes
Features
Resources
WATTS®, 88009222, Reducing Valve, High Capacity, Series: LF223, 1-1/2 in Nominal, FNPT End Style, 50 to 125 psi Pressure, 33 to 160 deg F, Media: Water, 6-3/4 in Inlet to Outlet Length, 9-7/8 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Stainless Steel Trim, Buna-N Softgoods
This 1 1/2 inch high capacity lead free water pressure reducing valve is used in high pressure applications and is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features a lead free cast copper silicon alloy body construction, NPT threaded female inlet and outlet connections, high temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for high capacity performance. This valve can be used for accessible outdoor waterworks or pit installations. The high pressure reduced range is 50 to 125 psi (3.4 to 8.6 bar).
- Enlarged diaphragm, spring cage and seat orifice for high capacity performance
- Bypass feature controls thermal expansion pressure
- High temperature resisting diaphragm for hot or cold water
- NPT threaded female inlet by NPT threaded female outlet
- Disc holder removable for replacement of disc without dismantling the valve, no special tools are required
Product Details
WATTS®, 88009222, Reducing Valve, High Capacity, Series: LF223, 1-1/2 in Nominal, FNPT End Style, 50 to 125 psi Pressure, 33 to 160 deg F, Media: Water, 6-3/4 in Inlet to Outlet Length, 9-7/8 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Stainless Steel Trim, Buna-N Softgoods
This 1 1/2 inch high capacity lead free water pressure reducing valve is used in high pressure applications and is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features a lead free cast copper silicon alloy body construction, NPT threaded female inlet and outlet connections, high temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for high capacity performance. This valve can be used for accessible outdoor waterworks or pit installations. The high pressure reduced range is 50 to 125 psi (3.4 to 8.6 bar).
Attributes
Features
- Enlarged diaphragm, spring cage and seat orifice for high capacity performance
- Bypass feature controls thermal expansion pressure
- High temperature resisting diaphragm for hot or cold water
- NPT threaded female inlet by NPT threaded female outlet
- Disc holder removable for replacement of disc without dismantling the valve, no special tools are required
