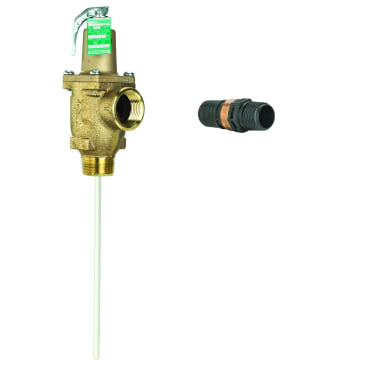

WATTS F556008 LF40XL-4 1X4 IP 210F 150PSI TEMPERATURE & PRESSURE VALVE WITH FLOW SENSOR
Product Details
Attributes
Features
Resources
WATTS®, F556008, Valve, Automatic Reseating, Series: LF40L, 1 in Nominal, Male NPTF x Female NPTF End Style, 112 psi Pressure, 210 deg F, 4 in Probe Length, Media: Water, Test Lever Actuator, Copper Silicon Alloy Body, 6-1/4 in H x 2-3/4 in W Dimensions, Domestic
This lead free automatic reseating temperature and pressure relief valve has a 1 inch NPTF male inlet, 1 inch NPTF female outlet, 4 inch coated extension thermostat, pressure relief setpoint of 150 psi, and temperature relief setpoint of 210 degrees F. The valve can be installed in hot water outlet within the allowable distance from the top of the tank for commercial applications to provide protection for hot water supply tanks and hot water heaters. It features a lead free copper silicon alloy body, tamper resistant bonnet screws, and test lever. Includes a nonrestrictive discharge drain line flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. Sensor activation requires purchase of an activation kit which can be connected to existing building management systems or the Watts Cellular Gateway.
- Requires purchase of activation kit to activate sensor
- Tamper resistant bonnet screws
- Non-mechanical seat to disc alignment
- 4 in coated thermostat length
