WATTS M740 1 60PSI PRESSURE REDUCING VALVE VALVE
Product Details
Attributes
Features
Resources

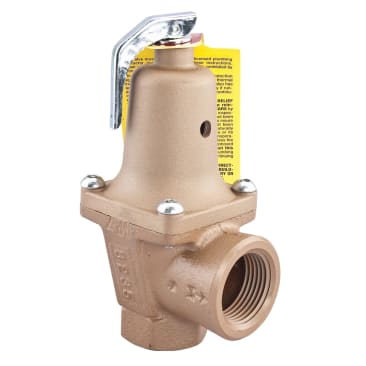

WATTS® Pressure Relief Valve, 740 Series, Model: M1, 3/4 x 1 in Nominal, NPT Connection, 60 psi, Lever Handle Actuator, Iron Body, 250 deg F, 3 in Length, 5-5/8 in Height, Additional Information: 1566000 Btu/hr
This 3/4 in boiler pressure relief valve is used in hot water space heating boiler applications to protect against excessive pressure on all types of hot water space heating boiler equipment. It consists of an iron body construction with expanded outlet drain connections for hot water space heating boilers, non-metallic disc to metal seating, stainless steel spring and test lever. It offers large discharge capacity, resists corrosive water conditions, resists sticking and freezing and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief, not as an operating control. The pressure relief is set at 60 psi (413.7 kPa) with corresponding high pressure ratings up to 1566000 Btu/hr.
- Iron body with expanded outlets for hot water space heating boilers
- Seat located above drain, water can't be trapped and sediment can't foul seat
- Non-mechanical seat-to-disc alignment will not stick or freeze
- Each hot water space heating boiler shall be equipped with a pressure relief valve set to relieve below the maximum boiler working pressure
- Water seal of high temperature resisting material isolates spring working parts from water during relief
Product Details
WATTS® Pressure Relief Valve, 740 Series, Model: M1, 3/4 x 1 in Nominal, NPT Connection, 60 psi, Lever Handle Actuator, Iron Body, 250 deg F, 3 in Length, 5-5/8 in Height, Additional Information: 1566000 Btu/hr
This 3/4 in boiler pressure relief valve is used in hot water space heating boiler applications to protect against excessive pressure on all types of hot water space heating boiler equipment. It consists of an iron body construction with expanded outlet drain connections for hot water space heating boilers, non-metallic disc to metal seating, stainless steel spring and test lever. It offers large discharge capacity, resists corrosive water conditions, resists sticking and freezing and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief, not as an operating control. The pressure relief is set at 60 psi (413.7 kPa) with corresponding high pressure ratings up to 1566000 Btu/hr.
Attributes
Features
- Iron body with expanded outlets for hot water space heating boilers
- Seat located above drain, water can't be trapped and sediment can't foul seat
- Non-mechanical seat-to-disc alignment will not stick or freeze
- Each hot water space heating boiler shall be equipped with a pressure relief valve set to relieve below the maximum boiler working pressure
- Water seal of high temperature resisting material isolates spring working parts from water during relief
