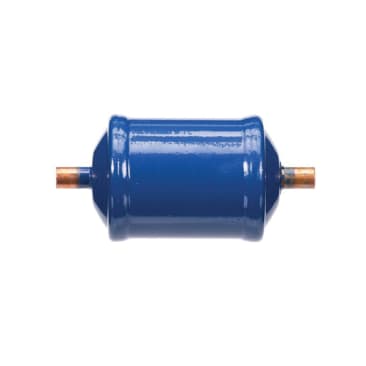

WHITE RODGERS EK 032SVCAP Image 1

WHITE RODGERS 063208 EK 032SVCAP 1/4ODFXCAP TUBE LIQUID LINE FILTER DRIER

MFR Part #: EK 032SVCAP
SKU #: 1291227
Brand: White-Rodgers™
UPC: 681344632081
White-Rodgers™ EK 032SVCAP Liquid Line Single Access Valve Filter Drier, 3 cu-in Unit, 1/4 in Solder x CAP Connection
For food service refrigeration systems
CRN 0E21971.513467890YTN|UL/cUL File No. SA3124

White-Rodgers™ Filter Drier, Liquid Line Single Access Valve, Series: EK Series, 3 cu-in Unit, 1/4 in Solder x CAP Connection, 680 psig Pressure, Epoxy Powder Paint

The EK liquid line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC and HFC refrigerants including R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502 and R-507.

Product Details

White-Rodgers™ Filter Drier, Liquid Line Single Access Valve, Series: EK Series, 3 cu-in Unit, 1/4 in Solder x CAP Connection, 680 psig Pressure, Epoxy Powder Paint

The EK liquid line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC and HFC refrigerants including R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502 and R-507.

Attributes

Finish: Epoxy Powder Paint
Series: EK Series
Type: Liquid Line Single Access Valve
Connection Type: 1/4 in Solder x CAP
Pressure Rating: 680 psig
Unit Size: 3 cu-in

Features

  • Filtration first for more effective use of surface area of desiccant
  • High moisture and acid removal capacity
  • Solid copper connections
  • Approved for POE oils with Copeland™ compressors
  • Shock-resistant steel shell construction
