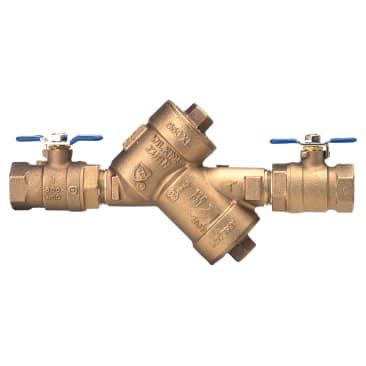

WILKINS 34-950XL Image 1

WILKINS 34-950XL DCVA SERIES 950 3/4IN 91000265

MFR Part #: 34-950XL
SKU #: 1113433
Brand: Zurn® | Wilkins
UPC: 612052040462
Zurn® Wilkins 34-950XL Model 950XL Backflow Preventer With Ball Valve, 3/4 in Nominal, MNPT End Style, Full Port QT Ball Valve, Cast Brass Body, Dual Check, Domestic
Limited
For installation on water lines to protect against both backsiphonage and backpressure of polluted water into the potable water supply
ASSE Listed 1015 | AWWA Compliant C510 | ANSI B1.20.1 | Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California | ASTM B 584 | CSA Certified | FM Approved | NSF | NYC MEA 426-89-M VOL 3 | IAPMO Listed | UL/cUL Listed (Less Shut-Off Valves) | USC Standard | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Zurn® Wilkins Backflow Preventer, Lead Free, Series: Model 950XL, 3/4 in Nominal, MNPT, 175 psi, 180 deg F, Full Port QT Ball Valve, Dual Check Backflow, Full Port, Media: Water, Cast Brass Body, 13 in L x 10 in W x 6.3 in H, Domestic

The 3/4 in 950XL Double Check Backflow Assembly is utilized in low health hazard, non-potable water applications for protection against both backsiphonage and backpressure of polluted water into the potable water supply. The 950XL is a wye pattern, short lay length Double Check Backflow Preventer and features a maximum working water pressure of 175 psi, hydrostatic test pressure of 350 psi, maximum working water pressure of 180 deg F and threaded end connections. It includes corrosion-resistant stainless steel springs, fasteners and ball valve handles and replaceable Noryl® seats and silicone seal rings for added convenience.

Product Details

Zurn® Wilkins Backflow Preventer, Lead Free, Series: Model 950XL, 3/4 in Nominal, MNPT, 175 psi, 180 deg F, Full Port QT Ball Valve, Dual Check Backflow, Full Port, Media: Water, Cast Brass Body, 13 in L x 10 in W x 6.3 in H, Domestic

The 3/4 in 950XL Double Check Backflow Assembly is utilized in low health hazard, non-potable water applications for protection against both backsiphonage and backpressure of polluted water into the potable water supply. The 950XL is a wye pattern, short lay length Double Check Backflow Preventer and features a maximum working water pressure of 175 psi, hydrostatic test pressure of 350 psi, maximum working water pressure of 180 deg F and threaded end connections. It includes corrosion-resistant stainless steel springs, fasteners and ball valve handles and replaceable Noryl® seats and silicone seal rings for added convenience.

Attributes

Backflow Type: Dual Check
Connection Type: MNPT
Country Of Origin: US
Nominal Size: 3/4 in
Body Material: Cast Brass
Domestic/Import: Domestic
Media: Water
Port Type: Full
Pressure Rating: 175 psi
Temperature Rating: 180 deg F

Features

  • Short lay length provides easy installation in compact spaces
  • Seats and silicone seal rings are fully replaceable for low lifetime costs
  • Safely protects potable water supply from polluted water
  • Construction offers corrosion-resistance and winterization
  • Replaceable Noryl® seats and silicone seal ring
  • Designed for non-health hazard
