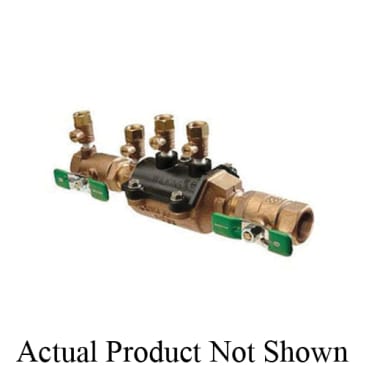

ZURN 12-350XL Image 1

ZURN 12-350XL-ASSY WILKINS 12-350XL 1/2 DCVA CART STY LD FR

MFR Part #: 12-350XL
SKU #: 1182160
Brand: Zurn® | Wilkins
UPC: 882557
Zurn® Wilkins 12-350XL 350XL Valve Assembly, 1/2 in Nominal, NPT End Style, Quarter-Turn Ball Valve, Bronze Body, Dual Check, Domestic
1 Year Limited
Potable Water Lines in Fire Protection Systems
Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California | ANSI B1.20.1 | ASSE 1015 | ASTM B 584 | AWWA C510 | CSA B64.5 | cUL Listed | CUPC Listed | FDA Approved | IAPMO Listed | ANSI/NSF 61 | UL Listed

Zurn® Wilkins, 12-350XL, Valve Assembly, Series: 350XL, 1/2 in Nominal, NPT End Style, 175 psi Pressure, 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Dual Check Backflow, Full Port, Media: Water, Bronze Body, Natural White, Domestic

The 350XL Double Check Backflow Preventer provides low health hazard protection in potable water applications. The EZSwap™ removable pressure vessel provides safe and easy line flushing, quick winterization and simple maintenance and repair.

Product Details

Zurn® Wilkins, 12-350XL, Valve Assembly, Series: 350XL, 1/2 in Nominal, NPT End Style, 175 psi Pressure, 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Dual Check Backflow, Full Port, Media: Water, Bronze Body, Natural White, Domestic

The 350XL Double Check Backflow Preventer provides low health hazard protection in potable water applications. The EZSwap™ removable pressure vessel provides safe and easy line flushing, quick winterization and simple maintenance and repair.

Attributes

Backflow Type: Dual Check
Connection Type: NPT
Country Of Origin: US
Nominal Size: 1/2 in
Ball Valve/Gate Valve Type: Quarter-Turn Ball Valve
Body Material: Bronze
Color: Natural White
Domestic/Import: Domestic
Media: Water
Port Type: Full
Pressure Rating: 175 psi
Series: 350XL
Temperature Rating: 180 deg F

Features

  • Patented removable pressure vessel
  • Low-lead design is suitable for drinking water
  • Top-mounted test cocks ease installations
  • Cast bronze construction
  • 350 psi hydrostatic test pressure
  • 0.25% maximum weighted average lead content

Resources

Catalog
Instruction/Installation Manual
Line Drawing
Specification Sheet
