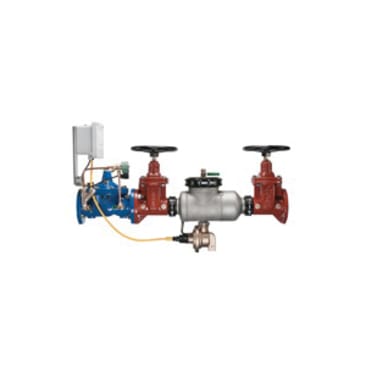

ZURN 4-FCISAST Image 1

ZURN 4-FCISAST 4 GRV STAINLESS STEEL BACKFLOW FLOOD CONTROL SYSTEM WITH NRS GATE VALVE

MFR Part #: 4-FCISAST
SKU #: 1286301
Brand: Zurn Elkay Water Solutions | Zurn®
UPC: 8481300090
Zurn® Wilkins 4-FCISAST FCIS Flood Control Integrated System, 4 in Nominal, Flanged End Style, Non-Rising Stem Gate Valve, Stainless Steel Body, 150 lb, Domestic
1 Year Limited
Model 375MS or Model 975XL2MS Reduced Pressure Principle Backflow Preventer and Monitor Switch, Electronic Solenoid Time (Model EST) Signal Relay and Model ZW206 Normal Open Solenoid Control Valve
Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California | ANSI B16.1 | ANSI B1.20.1 | ASSE 1013 | AWWA C511 | AWWA C530 | AWWA C550 | AWWA C606 | CSA Certified | FM Approved | IAPMO Listed | ANSI/NSF 372 by IAPMO R and T

Zurn® Wilkins Flood Control Integrated System, Series: FCIS, 4 in Nominal, Flanged, 175 psi, 150 lb Pressure Class, 140 deg F, Non-Rising Stem Gate Valve Ball Valve/Gate Valve, Full Port, Media: Water, Stainless Steel Body, 50 in L, Domestic

The Zurn® Wilkins FCIS reduces the risk of flooding from catastrophic relief valve water discharge. The combination of a 375AST, ZW206 ACV and EST electronics bundle identifies water discharge, isolates the system and notifies building management.

Product Details

Zurn® Wilkins Flood Control Integrated System, Series: FCIS, 4 in Nominal, Flanged, 175 psi, 150 lb Pressure Class, 140 deg F, Non-Rising Stem Gate Valve Ball Valve/Gate Valve, Full Port, Media: Water, Stainless Steel Body, 50 in L, Domestic

The Zurn® Wilkins FCIS reduces the risk of flooding from catastrophic relief valve water discharge. The combination of a 375AST, ZW206 ACV and EST electronics bundle identifies water discharge, isolates the system and notifies building management.

Attributes

Nominal Size: 4 in
Ball Valve/Gate Valve Type: Non-Rising Stem Gate Valve
Body Material: Stainless Steel
Dimensions: 50 in L
Domestic/Import: Domestic
End Style: Flanged
Media: Water
Port Type: Full
Pressure Class: 150 lb
Pressure Rating: 175 psi
Series: FCIS
Temperature Rating: 140 deg F

Features

  • Used with 375AMS, 975XLMS and ZW206 reduced pressure principle assembly
  • Provided contacts for alarms or solenoid valve shut-off
  • Built-in adjustable time delay
  • Modular quick disconnect cabling to simplify installation, service and maintenance, eliminating conduit and conduit fittings
  • The Flood Control Integrated System (FCIS) prevents flooding of a building, caused by the discharge from a catastrophically fouled Reduced Pressure Principal backflow preventer
  • Flanged non rising stem gate valves
