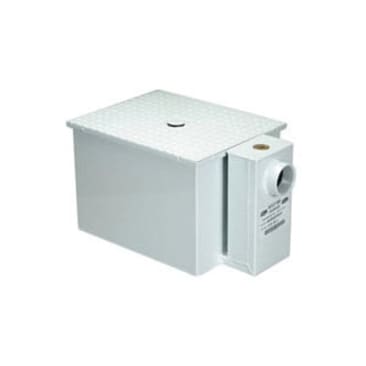

ZURN Z1170-800-4NH 50 GPM GREASE INTERCEPTOR
Product Details
Attributes
Features
Resources
Zurn® Grease Interceptor, Series: Z1170, #800 Nominal, 4 in Inlet Connection, 4 in Outlet, 100 lb Capacity, 50 gpm Flow Rate, No-Hub Connection, Fabricated Steel, White, 36 in L x 24-1/2 in W x 21-1/2 in H Dimensions
The Z1170 Grease Interceptor is an acid resistant coated interior and exterior fabricated steel grease interceptor, PDI Rated, with internal air relief by-pass. This interceptor also comes standard with bronze cleanout plug, removable pressure equalizing/flow diffusing inlet baffle, fixed bottom outlet baffle and visible double wall trap seal. Gasketed non-skid secured cover complete with tie down assembly and Z1108 flow control fitting. Regularly furnished with high inlet and outlet connection.
- Above or below grade applications
Product Details
Zurn® Grease Interceptor, Series: Z1170, #800 Nominal, 4 in Inlet Connection, 4 in Outlet, 100 lb Capacity, 50 gpm Flow Rate, No-Hub Connection, Fabricated Steel, White, 36 in L x 24-1/2 in W x 21-1/2 in H Dimensions
The Z1170 Grease Interceptor is an acid resistant coated interior and exterior fabricated steel grease interceptor, PDI Rated, with internal air relief by-pass. This interceptor also comes standard with bronze cleanout plug, removable pressure equalizing/flow diffusing inlet baffle, fixed bottom outlet baffle and visible double wall trap seal. Gasketed non-skid secured cover complete with tie down assembly and Z1108 flow control fitting. Regularly furnished with high inlet and outlet connection.
Attributes
Features
- Above or below grade applications
