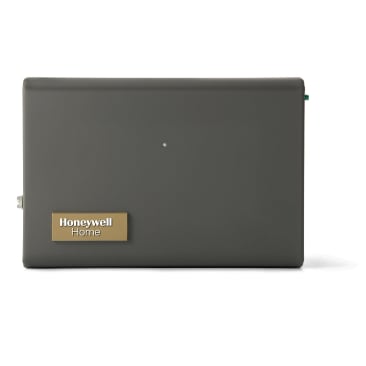

HONEYWELL L8148A1017/U AQUASTAT RELAY 140-240F
MFR Part #: L8148A1017/U
SKU #: 1027320
Brand: Honeywell
UPC: 085267055086
Resideo L8148A1017/U High Limit Aquastat Relay, 120 VAC, 140 to 240 deg F, 8 deg F Differential, Horizontal Mount, Domestic
Limited
CSA File No. LR1620 | Guide No MBPR2 | UL File No. MP466
Product Details
Attributes
Features
Resources
Resideo Aquastat Relay, High Limit, 120 VAC, 140 to 240 deg F, 8 deg F Differential, Horizontal Mount, 1-1/2 to 3 in Insulation Depth, 0 to 95% Humidity, Domestic
The L8148 Aquastat® Relays are immersion type hydronic controllers that combine high limit protection with switching relay control of burner and circulator motors.
Country Of Origin:US
Differential:8 deg F
Domestic/Import:Domestic
Humidity Range:0 to 95%
Insulation Depth:1-1/2 to 3 in
Mounting Type:Horizontal
Temperature Rating:140 to 240 deg F
Type:High Limit
Voltage Rating:120 VAC
- High limit opens burner circuit only
- Select models include transformer and accessory terminals for adding a remote low limit controller
- Case available for horizontal or vertical mounting
- Requires a 24 Vac thermostat with heat anticipator set at 0.2A
- TRADELINE models include well adapter, tube of heat conductive compound and range stops
Product Details
Resideo Aquastat Relay, High Limit, 120 VAC, 140 to 240 deg F, 8 deg F Differential, Horizontal Mount, 1-1/2 to 3 in Insulation Depth, 0 to 95% Humidity, Domestic
The L8148 Aquastat® Relays are immersion type hydronic controllers that combine high limit protection with switching relay control of burner and circulator motors.
Attributes
Country Of Origin: US
Differential: 8 deg F
Domestic/Import: Domestic
Humidity Range: 0 to 95%
Insulation Depth: 1-1/2 to 3 in
Mounting Type: Horizontal
Temperature Rating: 140 to 240 deg F
Type: High Limit
Voltage Rating: 120 VAC
Features
- High limit opens burner circuit only
- Select models include transformer and accessory terminals for adding a remote low limit controller
- Case available for horizontal or vertical mounting
- Requires a 24 Vac thermostat with heat anticipator set at 0.2A
- TRADELINE models include well adapter, tube of heat conductive compound and range stops
