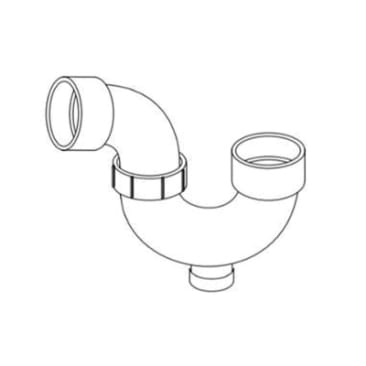

IPEX XFR 526505 1-1/2 PVC ADJUSTABLE UNION P-TRAP WITH CLEANOUT
MFR Part #: 526505
SKU #: 1030475
Brand: IPEX®
UPC: 622454300927
System XFR® 526505 P-Trap With Cleanout, 1-1/2 in Nominal, Union, PVC
Commercial, Industrial, Residential, Above Ground and Underground Applications
CSA B181.2 Certified | CAN/ULC S102.2 Listed
Product Details
Attributes
Features
Resources
System XFR® P-Trap With Cleanout, 1-1/2 in Nominal, Union Connection, PVC, 6.8 x 2.6 x 6.5 in
Made for connections to bathroom sink tail pieces and features a cleanout plug with a reusable watertight gasket.
Connection Type:Union
Nominal Size:1-1/2 in
Dimensions:6.8 x 2.6 x 6.5 in
Material:PVC
- When tested to the CAN/ULC S102.2 Standard, System XFR achieved a Flame Spread Rating of not greater than 25 and a Smoke Developed Classification of not greater than 50
- Meets National and Provincial Building Codes for high buildings, air plenums, noncombustible construction and penetrating a rate fire separation
- High impact strength in cold temperatures, exceeding CSA requirements
- Improved flow rates
- Lower thermal conductivity can reduce or eliminate the need for insulation
Product Details
System XFR® P-Trap With Cleanout, 1-1/2 in Nominal, Union Connection, PVC, 6.8 x 2.6 x 6.5 in
Made for connections to bathroom sink tail pieces and features a cleanout plug with a reusable watertight gasket.
Attributes
Connection Type: Union
Nominal Size: 1-1/2 in
Dimensions: 6.8 x 2.6 x 6.5 in
Material: PVC
Features
- When tested to the CAN/ULC S102.2 Standard, System XFR achieved a Flame Spread Rating of not greater than 25 and a Smoke Developed Classification of not greater than 50
- Meets National and Provincial Building Codes for high buildings, air plenums, noncombustible construction and penetrating a rate fire separation
- High impact strength in cold temperatures, exceeding CSA requirements
- Improved flow rates
- Lower thermal conductivity can reduce or eliminate the need for insulation
