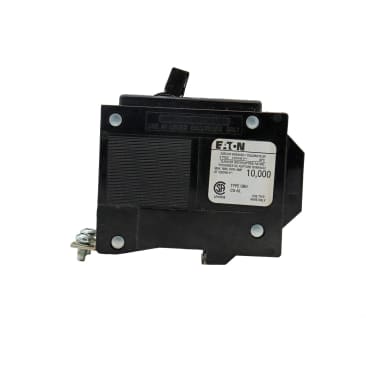

COMMANDER QBH-240 2 POLE 40 AMP BREAKER
MFR Part #: QBH240
SKU #: 0710130
Brand: Cutler-Hammer
UPC: 622588019931
Cutler-Hammer QBH240 Type QBH Classic Replacement Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
Loadcentres, Lighting/Distribution Panelboards and Meter Centres
UL Listed | CSA Certified | CE Marked | RoHS Compliant | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Details
Attributes
Features
Resources
Cutler-Hammer Classic Replacement Circuit Breaker, Type QBH, 120/240 VAC, 40 A, 10 kA Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph ph, Handle Actuator, Bolt-On Connection, 10 to 2 AWG Wire, 60 to 75 deg C, 1-1/2 in W x 3-1/4 in D Dimensions
Amperage Rating:
40 A
Number of Poles:
2
Actuator Type:
Handle
Connection Type:
Bolt-On
Dimensions:
1-1/2 in W x 3-1/4 in D
Interrupt Rating:
10 kA
Phase:
1
Temperature Rating:
60 to 75 deg C
Trip Type:
Thermal/Magnetic
Type:
Type QBH
Voltage Rating:
120/240 VAC
Wire Size:
10 to 2 AWG
- 3/4 in form factor
- Designed to fit the classic CEB, Sylvania or Commander electric design bolt-on loadcentres
- Silver tungsten contacts with wiping action to prevent carbon buildup on the contact surface
- Handle provides clear indication of ON/OFF/TRIPPED position
- Quick-make/quick-break mechanism provides tease-proof operation
- Internal common trip mechanism on two-pole circuit breakers
- Each breaker is electronically calibrated for 40 deg C
- Compression molded housing and handle for durability and service
- Residential and light commercial distribution
Product Details
Cutler-Hammer Classic Replacement Circuit Breaker, Type QBH, 120/240 VAC, 40 A, 10 kA Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph ph, Handle Actuator, Bolt-On Connection, 10 to 2 AWG Wire, 60 to 75 deg C, 1-1/2 in W x 3-1/4 in D Dimensions
Attributes
Amperage Rating: 40 A
Number of Poles: 2
Actuator Type: Handle
Connection Type: Bolt-On
Dimensions: 1-1/2 in W x 3-1/4 in D
Interrupt Rating: 10 kA
Phase: 1
Temperature Rating: 60 to 75 deg C
Trip Type: Thermal/Magnetic
Type: Type QBH
Voltage Rating: 120/240 VAC
Wire Size: 10 to 2 AWG
Features
- 3/4 in form factor
- Designed to fit the classic CEB, Sylvania or Commander electric design bolt-on loadcentres
- Silver tungsten contacts with wiping action to prevent carbon buildup on the contact surface
- Handle provides clear indication of ON/OFF/TRIPPED position
- Quick-make/quick-break mechanism provides tease-proof operation
- Internal common trip mechanism on two-pole circuit breakers
- Each breaker is electronically calibrated for 40 deg C
- Compression molded housing and handle for durability and service
- Residential and light commercial distribution
