KITZ 055-51684 4 125# FLG CI SWING CHECK 78
MFR Part #: 78-400
SKU #: 0575216
Brand: KITZ
UPC: 747066005838

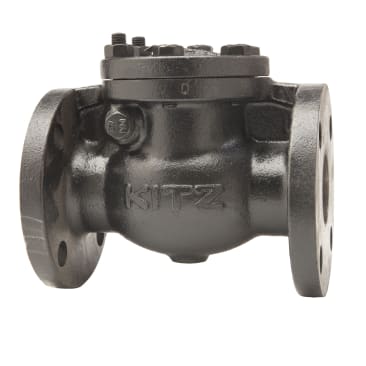

KITZ 78 Series 78-400 Swing Check Valve, 4 in, Flanged, Iron
ANSI B16.10/B16.1 Class 125 | MSS SP-71 Type I
Product Details
Attributes
Features
Resources
KITZ Swing Check Valve, 78 Series, 4 in Nominal, Flanged Connection, 200 psi, Pressure Class: 125 lb, -20 to 406 deg F, Gas, Oil, Steam, Water Media, 11-1/2 in Inlet to Outlet Length, 6-1/2 in Top to Inlet Center, Iron Body, Bronze Seal, Bronze Disc, Bronze Trim
Body Material:
Iron
Connection Type:
Flanged
Disc Material:
Bronze
Inlet to Outlet Length:
11-1/2 in
Media:
Gas, Oil, Steam, Water
Nominal Size:
4 in
Pressure Class:
125 lb
Pressure Rating:
200 psi
Seal Material:
Bronze
Series:
78 Series
Temperature Rating:
-20 to 406 deg F
Top to Inlet Center:
6-1/2 in
Trim Material:
Bronze
- Bolted cover
- Bronze mounted swing-type disc
- Cast iron cover, carbon steel plug, disc nut, cover nut, cover bolt, disc bolt and spring pin, stainless steel split pin, aluminum name plate, forged brass hinge pin, ductile iron arm
Product Details
KITZ Swing Check Valve, 78 Series, 4 in Nominal, Flanged Connection, 200 psi, Pressure Class: 125 lb, -20 to 406 deg F, Gas, Oil, Steam, Water Media, 11-1/2 in Inlet to Outlet Length, 6-1/2 in Top to Inlet Center, Iron Body, Bronze Seal, Bronze Disc, Bronze Trim
Attributes
Body Material: Iron
Connection Type: Flanged
Disc Material: Bronze
Inlet to Outlet Length: 11-1/2 in
Media: Gas, Oil, Steam, Water
Nominal Size: 4 in
Pressure Class: 125 lb
Pressure Rating: 200 psi
Seal Material: Bronze
Series: 78 Series
Temperature Rating: -20 to 406 deg F
Top to Inlet Center: 6-1/2 in
Trim Material: Bronze
Features
- Bolted cover
- Bronze mounted swing-type disc
- Cast iron cover, carbon steel plug, disc nut, cover nut, cover bolt, disc bolt and spring pin, stainless steel split pin, aluminum name plate, forged brass hinge pin, ductile iron arm
