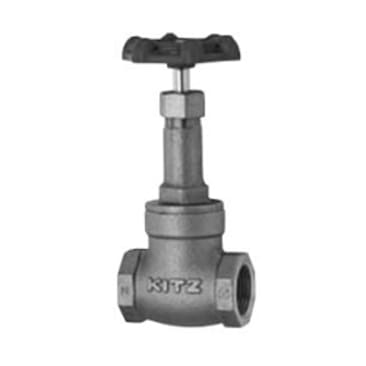

KITZ 24-012 Image 1

KITZ 053-48008 1/2 IP BRZ GATE VLV 24

MFR Part #: 24-012
SKU #: 1020328
Brand: KITZ
UPC: 400003283392
KITZ 24 1/2 24 (AK125M) Gate Valve, 1/2 in Nominal, Thread End Style, 125 lb, Bronze Body, Handwheel Actuator
ANSI B1.20.1 Threaded Ends | ASTM B62 Body/Bonnet/Stem/Disc | ASTM B283 | C37700 Packing Nut | ASTM B16 Gland/Wheel Nut | ASTM B86 Handwheel | MSS SP-80 | TYPE 2 Design/Military

KITZ Gate Valve, Series: 24 (AK125M), 1/2 in Nominal, Thread End Style, 125/200 psi Pressure, 125 lb Pressure Class, Handwheel Actuator, 2.01 in Inlet to Outlet Length, 5.08 in Top to Inlet Center, Bronze Body, Cast Bronze Trim, Aramid Fiber Softgoods, 2.17 in Diameter Hand Wheel

KITZ Bronze valves are built on fully automated molding and machining lines. This highly automated process achieves consistent precision in manufacturing commercial and industrial valves for water, oil, gas and steam services. More than a promise of excellent performance, they deliver the needed efficiency for all-around, problem-free flow control.

Product Details

KITZ Gate Valve, Series: 24 (AK125M), 1/2 in Nominal, Thread End Style, 125/200 psi Pressure, 125 lb Pressure Class, Handwheel Actuator, 2.01 in Inlet to Outlet Length, 5.08 in Top to Inlet Center, Bronze Body, Cast Bronze Trim, Aramid Fiber Softgoods, 2.17 in Diameter Hand Wheel

KITZ Bronze valves are built on fully automated molding and machining lines. This highly automated process achieves consistent precision in manufacturing commercial and industrial valves for water, oil, gas and steam services. More than a promise of excellent performance, they deliver the needed efficiency for all-around, problem-free flow control.

Attributes

Body Material: Bronze
Nominal Size: 1/2 in
Pressure Class: 125 lb
Pressure Rating: 125/200 psi
Actuator Type: Handwheel
End Style: Thread
Hand Wheel Diameter: 2.17 in
Inlet to Outlet Length: 2.01 in
Series: 24 (AK125M)
Softgoods Material: Aramid Fiber
Top to Inlet Center: 5.08 in
Trim Material: Cast Bronze

Features

  • Screw-in bonnet
  • Rising stem
  • Solid wedge disc
  • Cast bronze bonnet/disc, forged brass packing nut, brass rod gland and wheel nut, zinc die cast hand wheel, aluminum name plate
  • 125 psi saturated steam to 353 deg F/fluid to 406 deg F and 200 psi non shock cold water, oil or gas

Resources

Specification Sheet
