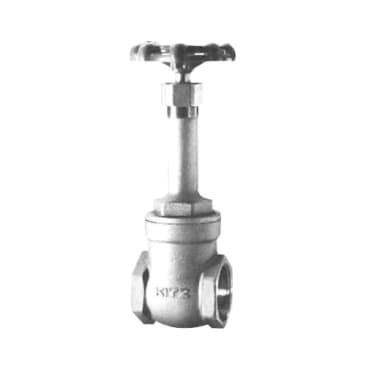

KITZ 053-48016 3/4 IP BRONZE GATE VLV 24
MFR Part #: 24-034
SKU #: 1006202
Brand: KITZ
UPC: 747066001847
KITZ 24 Series 24-034 Gate Valve, 3/4 in, FNPT, Bronze, 125 psi, 200 psi
ASME B1.20.1 | MSS-SP-80 Type 2
Product Details
Attributes
Features
Resources
KITZ Gate Valve, 24 Series, 3/4 in Nominal, FNPT Connection, 125 psi, 200 psi, Pressure Class: 125 lb, Gas, Oil, Steam, Water Media, 2.2 in Inlet to Outlet Length, 6.1 in Top to Inlet Center, Bronze Body, Bronze Stem, Bronze Disc, Graphite Packing, Zinc Handle, Handwheel Operator, 38 Cv Flow Coefficient (Cv), 406 deg F, Material Standard: ASTM B62, B86
Body Material:Bronze
Connection Type:FNPT
Nominal Size:3/4 in
Pressure Class:125 lb
Pressure Rating:125 psi, 200 psi
Disc Material:Bronze
Flow Coefficient (Cv):38 Cv
Handle Material:Zinc
Inlet to Outlet Length:2.2 in
Material Standard:ASTM B62, B86
Media:Gas, Oil, Steam, Water
Operator Type:Handwheel
Packing Material:Graphite
Series:24 Series
Stem Material:Bronze
Temperature Rating:406 deg F
Top to Inlet Center:6.1 in
- Inside screw rising stem
- Screwed bonnet
- Solid wedge disc
Product Details
KITZ Gate Valve, 24 Series, 3/4 in Nominal, FNPT Connection, 125 psi, 200 psi, Pressure Class: 125 lb, Gas, Oil, Steam, Water Media, 2.2 in Inlet to Outlet Length, 6.1 in Top to Inlet Center, Bronze Body, Bronze Stem, Bronze Disc, Graphite Packing, Zinc Handle, Handwheel Operator, 38 Cv Flow Coefficient (Cv), 406 deg F, Material Standard: ASTM B62, B86
Attributes
Body Material: Bronze
Connection Type: FNPT
Nominal Size: 3/4 in
Pressure Class: 125 lb
Pressure Rating: 125 psi, 200 psi
Disc Material: Bronze
Flow Coefficient (Cv): 38 Cv
Handle Material: Zinc
Inlet to Outlet Length: 2.2 in
Material Standard: ASTM B62, B86
Media: Gas, Oil, Steam, Water
Operator Type: Handwheel
Packing Material: Graphite
Series: 24 Series
Stem Material: Bronze
Temperature Rating: 406 deg F
Top to Inlet Center: 6.1 in
Features
- Inside screw rising stem
- Screwed bonnet
- Solid wedge disc
