ALLTEMP 45050H 370/440V CAPACITOR 5MFD
MFR Part #: 45050H
SKU #: 1246622
Brand: Diversitech
UPC: 095247413447

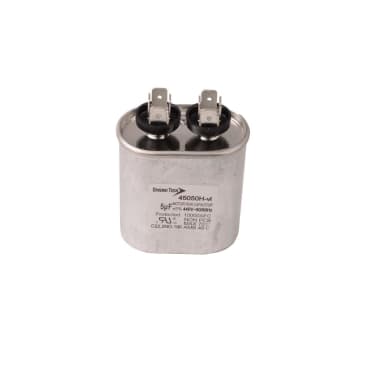

Diversitech 45050H Single Motor Run Capacitor, 5 uF, 440 VAC, Oval
CSA 22.2 No 190 | IEC 60252 | UL 810
Product Details
Attributes
Features
Resources
Diversitech Motor Run Capacitor, Single, 5 uF, 440 VAC, Oval, Metal Case, 50/60 Hz, +/- 5% Tolerance, 2.17 in H Case, Import
These single capacitance oval, metal can capacitors are designed for continuous run.
Capacitance:
5 uF
Case Material:
Metal
Country Of Origin:
China
Domestic/Import:
Import
Shape:
Oval
Specifications:
50/60 Hz, +/- 5% Tolerance, 2.17 in H Case
Type:
Single
Voltage Rating:
440 VAC
- Guaranteed for 10000 hr of life under normal operating conditions
- Operating life of 94 percent at 60000 hours
- Meets 10000 AFC safety requirement per UL 810
- Individually packaged
- Between terminals: Rated voltage x 1.75 VAC, 10 s withstand voltage test
- Between terminals and case: Rated voltage x 2+1000 VAC, 60 s withstand voltage test
- Maximum permissible voltage: 110 percent of the rated voltage
- Maximum permissible current: 130 percent of the rated current
- Oil filled, non PCB
- 1/4 in quick connect terminal
Product Details
Diversitech Motor Run Capacitor, Single, 5 uF, 440 VAC, Oval, Metal Case, 50/60 Hz, +/- 5% Tolerance, 2.17 in H Case, Import
These single capacitance oval, metal can capacitors are designed for continuous run.
Attributes
Capacitance: 5 uF
Case Material: Metal
Country Of Origin: China
Domestic/Import: Import
Shape: Oval
Specifications: 50/60 Hz, +/- 5% Tolerance, 2.17 in H Case
Type: Single
Voltage Rating: 440 VAC
Features
- Guaranteed for 10000 hr of life under normal operating conditions
- Operating life of 94 percent at 60000 hours
- Meets 10000 AFC safety requirement per UL 810
- Individually packaged
- Between terminals: Rated voltage x 1.75 VAC, 10 s withstand voltage test
- Between terminals and case: Rated voltage x 2+1000 VAC, 60 s withstand voltage test
- Maximum permissible voltage: 110 percent of the rated voltage
- Maximum permissible current: 130 percent of the rated current
- Oil filled, non PCB
- 1/4 in quick connect terminal
