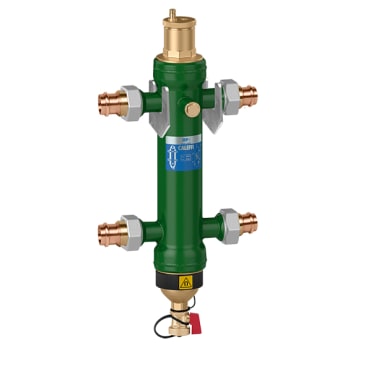

CALEFFI 549566A 1 PRESS UNION 4-IN-1 HYDRAULIC SEPARATOR
Product Details
Attributes
Features
Resources
Caleffi SEP4™ Magnetic Hydraulic Separator, 4-IN-1, Series: 5495, 1 in Nominal, Press, 150 psi Working, 32 to 210 deg F, 11 gpm, 0.5 Maximum Percentage of Glycol, PE-X Insulation, Steel
The multifunction hydraulic separator combines different functional components, each of them to satisfy specific needs of air conditioning system circuits. It is supplied complete with hot pre-formed shell insulation to ensure perfect thermal insulation when used with both hot and chilled water.
- Combination air, dirt, hydraulic and magnetic separator
- HDPE internal coalescing element, removable for cleaning
- Closed cell expanded PE-X insulation material
- Epoxy resin coated steel body
Product Details
Caleffi SEP4™ Magnetic Hydraulic Separator, 4-IN-1, Series: 5495, 1 in Nominal, Press, 150 psi Working, 32 to 210 deg F, 11 gpm, 0.5 Maximum Percentage of Glycol, PE-X Insulation, Steel
The multifunction hydraulic separator combines different functional components, each of them to satisfy specific needs of air conditioning system circuits. It is supplied complete with hot pre-formed shell insulation to ensure perfect thermal insulation when used with both hot and chilled water.
Attributes
Features
- Combination air, dirt, hydraulic and magnetic separator
- HDPE internal coalescing element, removable for cleaning
- Closed cell expanded PE-X insulation material
- Epoxy resin coated steel body
