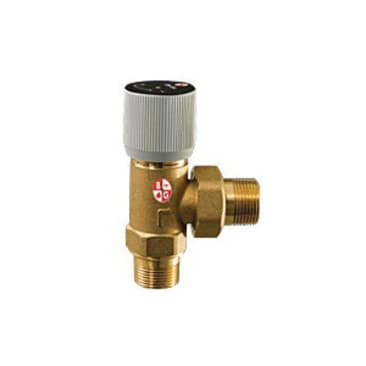

B&G 113247 Image 1

B&G 113247 3/4 DIFFERENTIAL BYPASS VALVE

MFR Part #: 113247
SKU #: 1057328
Brand: Bell & Gossett
UPC: 683328132471
Bell & Gossett 113247 Differential Bypass Valve, 3/4 in Nominal, MNPT End Style, 150 psig Pressure, 9 gpm Flow Rate, Brass Body
For hydronic systems utilizing zone valves

Bell & Gossett Differential Bypass Valve, 3/4 in Nominal, MNPT, 150 psig, 230 deg F, 9 gpm, Media: Water and Glycol Solutions, Brass Body, Stainless Steel Spring Trim, EPDM Seals/ABS Knob

The differential bypass valve is used in systems where heating loads may be excluded from the circuit as zone valves close. It controls the excess flow in the system by acting as a bypass while ensuring adequate flow to the remaining open circuits. The differential bypass valve helps reduce velocity noise caused by excess flow through the circuits while maintaining the pump head at a constant value.

Product Details

Bell & Gossett Differential Bypass Valve, 3/4 in Nominal, MNPT, 150 psig, 230 deg F, 9 gpm, Media: Water and Glycol Solutions, Brass Body, Stainless Steel Spring Trim, EPDM Seals/ABS Knob

The differential bypass valve is used in systems where heating loads may be excluded from the circuit as zone valves close. It controls the excess flow in the system by acting as a bypass while ensuring adequate flow to the remaining open circuits. The differential bypass valve helps reduce velocity noise caused by excess flow through the circuits while maintaining the pump head at a constant value.

Attributes

Body MaterialBrass
End StyleMNPT
Flow Rate9 gpm
MediaWater and Glycol Solutions
Nominal Size3/4 in
Pressure Rating150 psig
Softgoods MaterialEPDM Seals/ABS Knob
Temperature Rating230 deg F
Trim MaterialStainless Steel Spring

Features

  • Controls excess flow in the system when there is reduction in demand
  • All brass body with non-ferrous internals
