ALLANSON 2721-628G XFMR W/GSKT
MFR Part #: 2721-628
SKU #: 0446602
Brand: Allanson
UPC: 400000336688

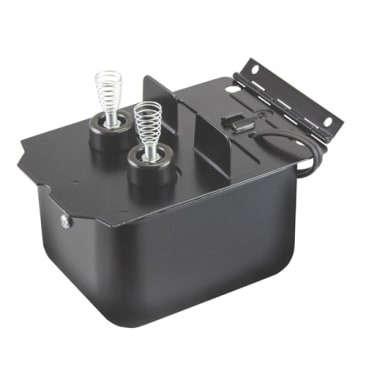

Allanson 2721 Series 2721-628 Production Transformer, 120 V Primary, 10000 V Secondary, 60 Hz
For Beckett A, AF burners
Product Details
Attributes
Features
Resources
Allanson Production Transformer, Series: 2721 Series, 120 V Primary, 10000 V Secondary, 23 mA, 250 VA VA Rating, 60 Hz, Hinge Mount, 2 Pole, Porcelain, -30 to 40 deg C, Additional Information: -40 to 80 deg C Storage Temperature
Amperage Rating:
23 mA
Frequency Rating:
60 Hz
Material:
Porcelain
Mounting Type:
Hinge
Number of Poles:
2
Primary Voltage:
120 V
Secondary Voltage:
10000 V
Series:
2721 Series
Temperature Rating:
-30 to 40 deg C
Additional Information:
-40 to 80 deg C Storage Temperature
VA Rating:
250 VA
- Designed with high temperature wire
- Runs cooler, quieter and safer on all types of burners
- Designed to manufacturer's burner specifications
- Meets American and European noise emission standards offering superior EMI and RFI protection
- Mid point ground
- Dependable power
- 1/8 - 3/16 in loading air gap
- Constant-duty
- Large spring contact HV terminal
Product Details
Allanson Production Transformer, Series: 2721 Series, 120 V Primary, 10000 V Secondary, 23 mA, 250 VA VA Rating, 60 Hz, Hinge Mount, 2 Pole, Porcelain, -30 to 40 deg C, Additional Information: -40 to 80 deg C Storage Temperature
Attributes
Amperage Rating: 23 mA
Frequency Rating: 60 Hz
Material: Porcelain
Mounting Type: Hinge
Number of Poles: 2
Primary Voltage: 120 V
Secondary Voltage: 10000 V
Series: 2721 Series
Temperature Rating: -30 to 40 deg C
Additional Information: -40 to 80 deg C Storage Temperature
VA Rating: 250 VA
Features
- Designed with high temperature wire
- Runs cooler, quieter and safer on all types of burners
- Designed to manufacturer's burner specifications
- Meets American and European noise emission standards offering superior EMI and RFI protection
- Mid point ground
- Dependable power
- 1/8 - 3/16 in loading air gap
- Constant-duty
- Large spring contact HV terminal
