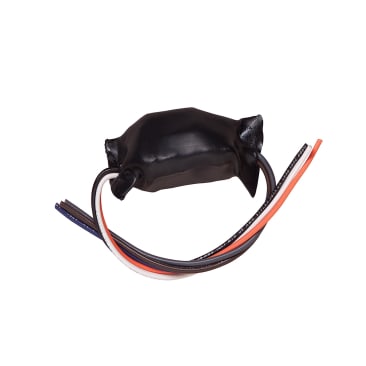

BRK RM4 120V ALARM RELAY
MFR Part #: RM4
SKU #: 1298474
Brand: BRK®
UPC: 029054000579
BRK® RM4 Smart Relay, 120 V AC, 0.02 A, 15 A at 120 V AC/30 VDC, Specifications Met: CSA 6.19, UL 217, 2034, 539, ULC S-531, ULCS-530
For used to control auxiliary devices using the interconnect signal from BRK smokes, CO's and heat alarms
Buy American Act Compliant
Product Details
Attributes
Features
Resources
BRK® Smart Relay, 120 V AC, 0.02 A, 15 A at 120 V AC/30 VDC Contact, 40 to 100 deg F, 10% to 90% Humidity, For Use With: BRK Smoke and Heat Alarms and Smart interconnect Break CO Alarm, Specifications: 60 Hz, Specifications Met: CSA 6.19, UL 217, 2034, 539, ULC S-531, ULCS-530, Black Oxide, 3-1/2 in L x 1-1/2 in H
Amperage Rating:.02 A
Color:Black Oxide
Contact Rating:15 A at 120 V AC/30 V DC
Dimensions:3-1/2 in L x 1-1/2 in H
Humidity:10% to 90%
Specifications:60 Hz
Specifications Met:CSA 6.19, UL 217, 2034, 539, ULC S-531, ULCS-530
Suitable For Use With:BRK Smoke and Heat Alarms and Smart interconnect Break CO Alarm
Temperature Rating:40 to 100 deg F
Voltage Rating:120 V AC
- Form-C contacts that switch between normally open and closed contacts
- Maximum contact rating - 120 V AC and 30 V DC, Resistive-15 A, Motor-1/3 horsepower
Product Details
BRK® Smart Relay, 120 V AC, 0.02 A, 15 A at 120 V AC/30 VDC Contact, 40 to 100 deg F, 10% to 90% Humidity, For Use With: BRK Smoke and Heat Alarms and Smart interconnect Break CO Alarm, Specifications: 60 Hz, Specifications Met: CSA 6.19, UL 217, 2034, 539, ULC S-531, ULCS-530, Black Oxide, 3-1/2 in L x 1-1/2 in H
Attributes
Amperage Rating: .02 A
Color: Black Oxide
Contact Rating: 15 A at 120 V AC/30 V DC
Dimensions: 3-1/2 in L x 1-1/2 in H
Humidity: 10% to 90%
Specifications: 60 Hz
Specifications Met: CSA 6.19, UL 217, 2034, 539, ULC S-531, ULCS-530
Suitable For Use With: BRK Smoke and Heat Alarms and Smart interconnect Break CO Alarm
Temperature Rating: 40 to 100 deg F
Voltage Rating: 120 V AC
Features
- Form-C contacts that switch between normally open and closed contacts
- Maximum contact rating - 120 V AC and 30 V DC, Resistive-15 A, Motor-1/3 horsepower
