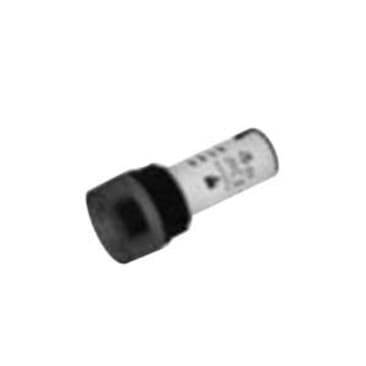

CARLO GAVAZZI PL22SFBZR110 FLASH/BUZZER RED 22MM 110V

Name: CARLO GAVAZZI PL22SFBZR110 FLASH/BUZZER RED 22MM 110V
Brand: Carlo Gavazzi
SKU: 1057396
Availability: OutOfStock

MFR Part #: PL22SFBZR110

SKU #: 1057396

Brand: Carlo Gavazzi

UPC: 8.03E+12

Carlo Gavazzi PL Series PL22SFBZR110 Flashing Buzzer, 110 V, 15 to 20 mA

CE Marked | cULus Listed | IEC/EN 60947-5-1, IEC/EN 60073, IEC/EN 60529 Certified | RoHS Compliant | UL 508

Product Details
Attributes
Features
Resources

Carlo Gavazzi Flashing Buzzer, PL Series, 110 V, 15 to 20 mA, Panel Mounting, 50/60 Hz, 22 mm Dia, 500 V Insulation, 2500 V Withstand Voltage, -25 to 70 deg C, IP40 Enclosure, 95 dB Sound Level, Red

Pilot lights and buzzer are panel-mounted device assemblies consisting of the housing, an internal lamp or buzzer, terminals and a cover. Applications include industrial control panels of all types, equipment indicator panels, status alarm indicator. The buzzer volume is 95 dB at 10 cm (3.94 in), the current is 20 mA.

Product Details

Carlo Gavazzi Flashing Buzzer, PL Series, 110 V, 15 to 20 mA, Panel Mounting, 50/60 Hz, 22 mm Dia, 500 V Insulation, 2500 V Withstand Voltage, -25 to 70 deg C, IP40 Enclosure, 95 dB Sound Level, Red

Pilot lights and buzzer are panel-mounted device assemblies consisting of the housing, an internal lamp or buzzer, terminals and a cover. Applications include industrial control panels of all types, equipment indicator panels, status alarm indicator. The buzzer volume is 95 dB at 10 cm (3.94 in), the current is 20 mA.

Attributes

Amperage Rating: 15 to 20 mA

Color: Red

Dimensions: 22 mm Dia

Enclosure Type: IP40

Frequency Rating: 50/60 Hz

Insulation Voltage: 500 V

Mounting Type: Panel

Series: PL Series

Sound Level: 95 dB

Temperature Rating: -25 to 70 deg C

Voltage Rating: 110 V

Withstand Voltage: 2500 V

Features

Interrupted sound

Resources

Specification Sheet
