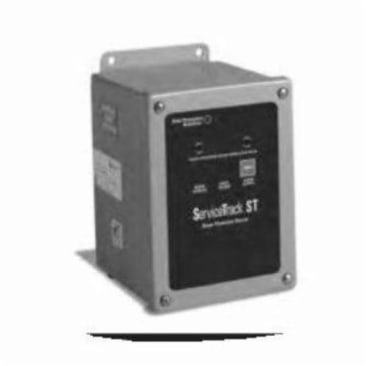

TPS TK-ST160-3Y600-L SERVICETRACK SURGE SUPPRESSION
MFR Part #: TK-ST160-3Y600
SKU #: 1154623
Brand: Service Track®
UPC: 999999337177
Service Track® TK-ST160-3Y600 Surge Panel Protector, 347/600 VAC, 40 Hz, 3 Phase
Ideal for distribution panels, branch panels and critical loads
UL 1449 | cULus Listed | ANSI/IEEE C62.41 Location C | B and A | CE Certified
Product Details
Attributes
Features
Service Track® Surge Panel Protector, 347/600 VAC Electrical Rating, 40 Hz Frequency, 3 Phase, 200 kA Short Circuit, 160 kA Peak Surge Current, 1 ns Response, NEMA 4 Enclosure
Electrical Ratings:
347/600 VAC
Enclosure Type:
NEMA 4
Frequency Rating:
40 Hz
Peak Surge Current:
160 kA
Phase:
3
Response Time:
1 ns
Short Circuit Current Rating:
200 kA
- Providing the highest level of protection with the lowest let-through voltage in the industry
- Fail-safe design
- Optional component level fusing
- Single pulse tested at independent 3rd party lab
- Form C dry relay contacts and audible alarm with silence button
- Two suppression technologies: MOV and all mode enhanced Transient Filter
- UL 1283 Tracking Filter
- Ultra, compact footprint - efficiency and performance
- Optimum performing parallel hybrid with component level fusing design
- L-N, L-L, L-G, N-G mode of protection
- Status indicator lights (one per phase & one service LED), form C dry relay contacts for suppressor status, audible alarm with silence button standard monitoring
- 11.5 in H x 8.28 in W x 6.28 in D dimension
- Steel and weatherproof enclosure
- -40 to 70 deg C operating temperature
- 160 kA/phase, 80 kA/Mode peak surge current
- Multi-Point feet
- < 1 ns response time
Product Details
Service Track® Surge Panel Protector, 347/600 VAC Electrical Rating, 40 Hz Frequency, 3 Phase, 200 kA Short Circuit, 160 kA Peak Surge Current, 1 ns Response, NEMA 4 Enclosure
Attributes
Electrical Ratings: 347/600 VAC
Enclosure Type: NEMA 4
Frequency Rating: 40 Hz
Peak Surge Current: 160 kA
Phase: 3
Response Time: 1 ns
Short Circuit Current Rating: 200 kA
Features
- Providing the highest level of protection with the lowest let-through voltage in the industry
- Fail-safe design
- Optional component level fusing
- Single pulse tested at independent 3rd party lab
- Form C dry relay contacts and audible alarm with silence button
- Two suppression technologies: MOV and all mode enhanced Transient Filter
- UL 1283 Tracking Filter
- Ultra, compact footprint - efficiency and performance
- Optimum performing parallel hybrid with component level fusing design
- L-N, L-L, L-G, N-G mode of protection
- Status indicator lights (one per phase & one service LED), form C dry relay contacts for suppressor status, audible alarm with silence button standard monitoring
- 11.5 in H x 8.28 in W x 6.28 in D dimension
- Steel and weatherproof enclosure
- -40 to 70 deg C operating temperature
- 160 kA/phase, 80 kA/Mode peak surge current
- Multi-Point feet
- < 1 ns response time
