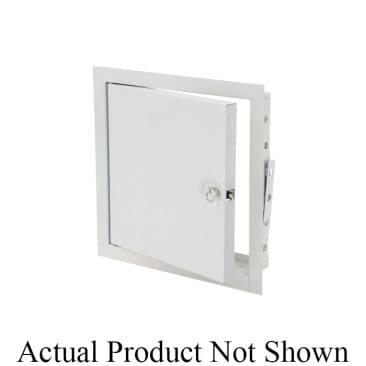

ELMDOR FR12X12PC-RTL 12X12 FIRE RATED ACCESS DOOR WALL MOUNT
Product Details
Attributes
Features
Resources
Elmdor Stoneman Wall Access Door, Fire Rated Uninsulated, Series: FR, 12 in Width, 16 ga Thickness, Galvannealed Steel, White, Prime Coated, Import
Access door and frame shall be fabricated from 16 ga, galvannealed steel with a prime coat finish suitable for painting. Hinge shall be concealed type. Door shall have a heavy duty spring to provide positive latching when closed, and an interior latch release slide enabling door to be opened from the inside. Exterior latch shall be recessed and operated using ring attached to the sliding bolt.
- Doors are fire rated by Underwriters Laboratories Inc, for 1-1/2 hr, "B" Label, ANSI-UL 10B, and CAN/ULC S104 for 2 hr in walls
- Door has a heavy duty spring closer to assure positive latching when panel closes
- Door and frame are fabricated from 16 ga, galvannealed steel with a white prime coat finish
- Frame is equipped with both masonry anchors and bolt holes to facilitate installation in all types of wall construction
- Concealed hinge operates completely out of sight so that only the door and frame is visible
- Exterior latch is recessed and is operated using a ring attached to the sliding bolt
- Interior latch release slide is included enabling door to be opened from the inside
- 12 in H
Product Details
Elmdor Stoneman Wall Access Door, Fire Rated Uninsulated, Series: FR, 12 in Width, 16 ga Thickness, Galvannealed Steel, White, Prime Coated, Import
Access door and frame shall be fabricated from 16 ga, galvannealed steel with a prime coat finish suitable for painting. Hinge shall be concealed type. Door shall have a heavy duty spring to provide positive latching when closed, and an interior latch release slide enabling door to be opened from the inside. Exterior latch shall be recessed and operated using ring attached to the sliding bolt.
Attributes
Features
- Doors are fire rated by Underwriters Laboratories Inc, for 1-1/2 hr, "B" Label, ANSI-UL 10B, and CAN/ULC S104 for 2 hr in walls
- Door has a heavy duty spring closer to assure positive latching when panel closes
- Door and frame are fabricated from 16 ga, galvannealed steel with a white prime coat finish
- Frame is equipped with both masonry anchors and bolt holes to facilitate installation in all types of wall construction
- Concealed hinge operates completely out of sight so that only the door and frame is visible
- Exterior latch is recessed and is operated using a ring attached to the sliding bolt
- Interior latch release slide is included enabling door to be opened from the inside
- 12 in H
