WATTS 81006634 Image 2

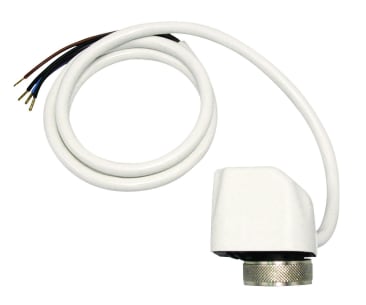

WATTS 81006634 22CX24NC2 2-WIRE 24VAC 2.5W ACTUATOR

MFR Part #: 81006634
SKU #: 1030651
Brand: WATTS® | Watts Radiant™
UPC: 098268118285
Watts Radiant™ 81006634 Valve Actuator, Import
2 Wire with Switch
PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Watts Radiant™ Valve Actuator, 2.5 W, 90 s Timing, 24 VAC Supply, 32 to 122 deg F, For Use With: Watts Radiant™ Stainless Steel and Cast Brass Manifold, Import

This valve actuator is desiged for low wattage, individual radiant circuit control. It provides on/off flow control to individual radiant circuits. Incorporates an indicator window that allows a visual indicator whether the valve is fully open or closed. Flow can be balanced prior to installing by turning the adjustment valve under the blue cap. Actuator is 24 VAC (1.6 W) with two wires to connect to the thermostat and close an end switch.

Product Details

Watts Radiant™ Valve Actuator, 2.5 W, 90 s Timing, 24 VAC Supply, 32 to 122 deg F, For Use With: Watts Radiant™ Stainless Steel and Cast Brass Manifold, Import

This valve actuator is desiged for low wattage, individual radiant circuit control. It provides on/off flow control to individual radiant circuits. Incorporates an indicator window that allows a visual indicator whether the valve is fully open or closed. Flow can be balanced prior to installing by turning the adjustment valve under the blue cap. Actuator is 24 VAC (1.6 W) with two wires to connect to the thermostat and close an end switch.

Attributes

Country Of Origin: ITALY
Domestic/Import: Import
Power Consumption: 2.5 W
Power Supply: 24 VAC
Suitable For Use With: Watts Radiant™ Stainless Steel and Cast Brass Manifold
Temperature Rating: 32 to 122 deg F
Timing: 90 s

Features

  • Great for multiple small radiant zones
  • Normally inch closed position
  • Features an indicator window that indicates valve open or close status
  • For low wattage, individual radiant circuit control
