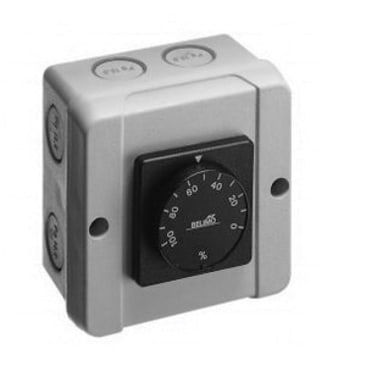

BELIMO SGA24 Image 1

BELIMO SGA24 POSITIONER WALL MT

MFR Part #: SGA24
SKU #: 1084724
Brand: BELIMO®
UPC: 400005882845
BELIMO® SGA24 Positioner, 24 VAC/VDC, 50/60 Hz, 1 VA, 0.3 W
For LM ASR, NM A-SR, SM A-SR and GM A-SR modulating damper actuator

BELIMO® Positioner, 24 VAC/VDC, 50/60 Hz, 1 VA, 0.3 W, Surface Mounting, -20 to 50 deg C Ambient, 3.307 in H x 3.307 in W x 2.34 in D

Product Details

BELIMO® Positioner, 24 VAC/VDC, 50/60 Hz, 1 VA, 0.3 W, Surface Mounting, -20 to 50 deg C Ambient, 3.307 in H x 3.307 in W x 2.34 in D

Attributes

Dimensions: 3.307 in H x 3.307 in W x 2.34 in D
Frequency Rating: 50/60 Hz
Mounting Type: Surface
Power Rating: 1 VA, 0.3 W
Temperature Rating: -20 to 50 deg C Ambient
Voltage Rating: 24 VAC/VDC

Features

  • For a maximum of 10 actuators output power
  • Terminals 1.5 sq-mm connection supply/control
  • 2 - 10 VDC positioning signal Y
  • 0 - 10 VDC switchable with slide switch positioning signal Y
  • Reversible operating range 0 - 10 VDC or 2 - 10 VDC operating range Y
  • 0 - 100% (angle of rotation can be limited mechanically with rotary knob) scale
  • III safety extra-low voltage protection class IEC/EN
  • IP40 (IP54 with cable glands) degree of protection IEC/EN
  • CE according to 2004/108/EC EMC
  • Type 1.B principle of operation
  • -40 to 80 deg C non-operating temperature
  • In according to EN60730-1 humidity test
  • Maintenance free

Resources

Specification Sheet
