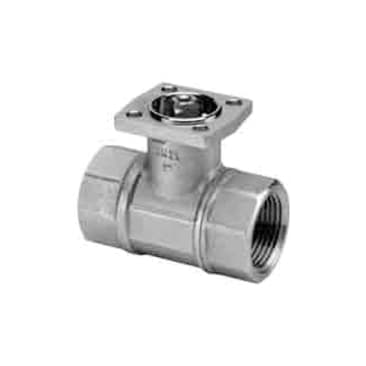

BELIMO B225 1 2WAY CCV VALVE 30CV
MFR Part #: B225
SKU #: 1085920
Brand: BELIMO®
UPC: 400005940309
BELIMO® B2 Series B225 Characterized Control Valve, 1 in, FNPT, 600 psi Working, 200 psi Close-Off, Forged Brass
(2) EPDM O-Ring and Lubricated Packing
For air handling units on heating or cooling coils, and fan coil unit heating or cooling coils, unit ventilators, VAV box re-heat coils and bypass loops and hydronic system with variable flow
EN 12266-1:2003 Certified
Product Details
Attributes
Features
Resources
BELIMO® Characterized Control Valve, B2 Series, 1 in Nominal, FNPT Connection, Number of Ways/Position: 2-Way, 600 psi Working, 200 psi Close-Off, 30 Cv Flow Coefficient (Cv), Stainless Steel Stem, Stainless Steel Ball Trim, EPDM Packing, TEFZEL® Disc, PTFE Seat, Forged Brass, Finish: Nickel-Plated, 0 to 250 deg F Water, 3.09 in L
Connection Type:
FNPT
Dimensions:
3.09 in L
Disc Material:
TEFZEL®
Finish:
Nickel-Plated
Flow Coefficient (Cv):
30 Cv
Material:
Forged Brass
Nominal Size:
1 in
Number of Ways/Position:
2-Way
Packing Material:
EPDM
Pressure Rating:
600 psi Working, 200 psi Close-Off
Seat Material:
PTFE
Series:
B2 Series
Stem Material:
Stainless steel
Temperature Rating:
0 to 250 deg F Water
Trim Material:
Stainless Steel Ball
- Typically used in air handling units on heating or cooling coils and fan coil unit heating or cooling coils
- A port equal percentage flow characteristics
- 75 deg controllable flow range
- Teflon® characterizing disc
- 0 to 250 deg F media temperature range
- 50 lb/sq-in maximum differential pressure for typical applications
- 0% for a to AB leakage
- No motorized actuator
- Chilled or hot water, 60% glycol service
Product Details
BELIMO® Characterized Control Valve, B2 Series, 1 in Nominal, FNPT Connection, Number of Ways/Position: 2-Way, 600 psi Working, 200 psi Close-Off, 30 Cv Flow Coefficient (Cv), Stainless Steel Stem, Stainless Steel Ball Trim, EPDM Packing, TEFZEL® Disc, PTFE Seat, Forged Brass, Finish: Nickel-Plated, 0 to 250 deg F Water, 3.09 in L
Attributes
Connection Type: FNPT
Dimensions: 3.09 in L
Disc Material: TEFZEL®
Finish: Nickel-Plated
Flow Coefficient (Cv): 30 Cv
Material: Forged Brass
Nominal Size: 1 in
Number of Ways/Position: 2-Way
Packing Material: EPDM
Pressure Rating: 600 psi Working, 200 psi Close-Off
Seat Material: PTFE
Series: B2 Series
Stem Material: Stainless steel
Temperature Rating: 0 to 250 deg F Water
Trim Material: Stainless Steel Ball
Features
- Typically used in air handling units on heating or cooling coils and fan coil unit heating or cooling coils
- A port equal percentage flow characteristics
- 75 deg controllable flow range
- Teflon® characterizing disc
- 0 to 250 deg F media temperature range
- 50 lb/sq-in maximum differential pressure for typical applications
- 0% for a to AB leakage
- No motorized actuator
- Chilled or hot water, 60% glycol service
