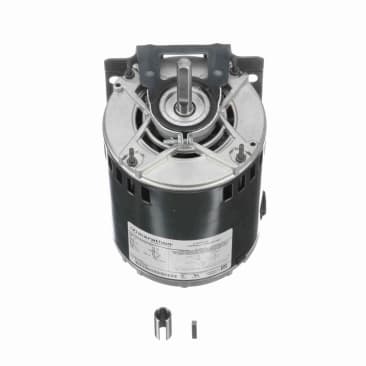

MARATHON 5KH35MNA519T Image 1
MARATHON 5KH35MNA519T Image 2
content loaded
MARATHON 5KH35MNA519T Image 1

1/2HP BELT DRIVEN MOTOR FAN MARATHON

MFR Part #: 5KH35MNA519T
SKU #: 1035630
Brand: Marathon®
UPC: 722856040220
LEESON®® 5KH35MNA519T 4-Pole Continuous Duty Split Phase AC Motor, Open Enclosure, 0.5 hp, 115 VAC, 60 Hz, 1 Phase, 48Y Frame, 1725 rpm Speed, Resilient Base Mount
CSA Certified | UL Listed

LEESON®® AC Motor, 4-Pole Continuous Duty Split Phase, Fan & Blower Motors Application, 0.5 hp, 115 VAC, 7.9 A, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, Open Enclosure, 48Y Frame, 1/2 in Dia x 2-1/4 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, Resilient Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10.32 in L x 5.66 in W x 5.83 in H

Product Details

LEESON®® AC Motor, 4-Pole Continuous Duty Split Phase, Fan & Blower Motors Application, 0.5 hp, 115 VAC, 7.9 A, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, Open Enclosure, 48Y Frame, 1/2 in Dia x 2-1/4 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, Resilient Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10.32 in L x 5.66 in W x 5.83 in H

Attributes

Amperage Rating: 7.9 A
Application Type: Fan & Blower Motors
Country Of Origin: Mexico
Frame: 48Y
Frequency Rating: 60 Hz
Horsepower: .5 hp
Phase: 1
Rotation: CW/CCW
Shaft Size: 1/2 in Dia x 2-1/4 in L
Speed: 1725 rpm
Type: 4-Pole Continuous Duty Split Phase
Voltage Rating: 115 VAC
Bearing Type: Ball
Dimensions: 10.32 in L x 5.66 in W x 5.83 in H
Enclosure Type: Open
Insulation Class: Class B
Material: Rolled Steel
Mounting Type: Resilient Base
Number of Speeds: 1
Service Factor: 1.25
Temperature Rating: 40 deg C

Features

  • Variable torque on two speed motors
  • Extended thru-bolts
  • 48Y and 48YZ frame have 48/56 frame mounting holes
  • Automatic reset thermal protector prevents overheating
  • Patented MAXGuard insulation system offers superior protection for use with a variable frequency drive
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor
  • Ambient temperature up to 70 deg C allows for consistent operation in a range of environments and applications
  • Vertical/horizontal mounting for proper placement of the fan within airflow
  • Continuous duty cycle design allows maximum operation at the rated power specifications
  • Class B or F Insulation protects motor for a maximum temperature rating

Resources

Specification Sheet
