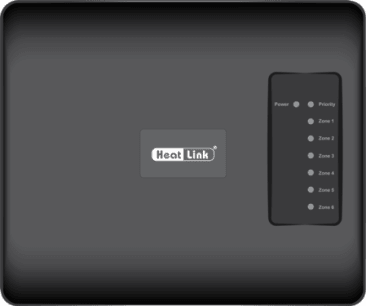

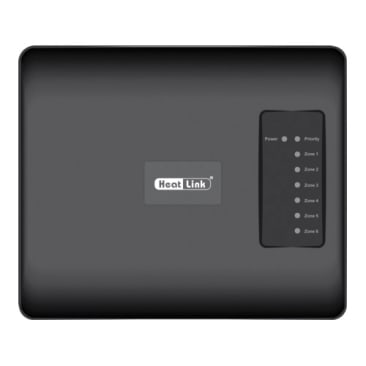

HEATLINK 41316 6 ZONE PUMP WIRING CENTER
MFR Part #: 41316
SKU #: 1211220
Brand: HeatLink®
UPC: 62799801650
HeatLink® 41316 Zone Wiring Center, 6 Zones, Import
CE: RoHS | REACH | WEEE | FCC | Industry Canada | ETL certified to CSA C22-2 No. 24 and UL873
Product Details
Attributes
Features
Resources
HeatLink® Zone Wiring Center, Series: 41310, 6 Zones, 11 in W x 3.15 in D x 9.25 in H Dimensions, Import
The pump wiring centers allow wired thermostats to control pumps and boilers for hydronic systems.
Country Of Origin:
China
Dimensions:
11 in W x 3.15 in D x 9.25 in H
Domestic/Import:
Import
Number of Zones:
6
Series:
41310
- Primary pump control
- Priority zone support (domestic hot water)
- Purge - priority pump continues to run for 2 min after end of priority call
- Exercise - pumps turn on for 30 s after 72 hr of inactivity
- Thermostat grouping
- ZC/ZR boiler enable support
- XX and AUX normally open contacts support
- Led indicators for zones and priority status
Product Details
HeatLink® Zone Wiring Center, Series: 41310, 6 Zones, 11 in W x 3.15 in D x 9.25 in H Dimensions, Import
The pump wiring centers allow wired thermostats to control pumps and boilers for hydronic systems.
Attributes
Country Of Origin: China
Dimensions: 11 in W x 3.15 in D x 9.25 in H
Domestic/Import: Import
Number of Zones: 6
Series: 41310
Features
- Primary pump control
- Priority zone support (domestic hot water)
- Purge - priority pump continues to run for 2 min after end of priority call
- Exercise - pumps turn on for 30 s after 72 hr of inactivity
- Thermostat grouping
- ZC/ZR boiler enable support
- XX and AUX normally open contacts support
- Led indicators for zones and priority status
