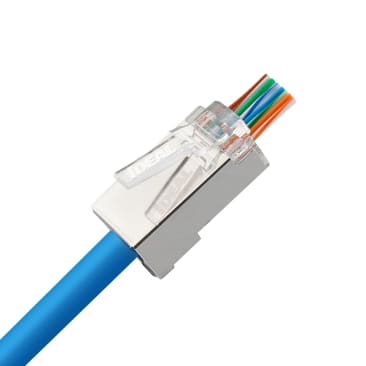

IDEAL 85-365 CAT5E SHIELDED FEED-THRU RJ-45 25PK

IDEAL® Modular Plug, RJ45 Feed-Thru, Shielded Cable, 0.27 in OD Cable, 24 AWG Conductor, Cat 6a/6/5e LAN Category

Shielded Feed-Thru CAT5e RJ45 connectors simplify assembly by allowing the user to verify the conductors are in the correct order before crimping the connector. This connector has an attached metal shell that is designed to provide a continuous path for the cable shielding to pass through the connector and into the device's shielded port. The connector has internal shield connection points on the top and bottom of the connector for cable foil or drain wire to make contact within the plug. The plugs are compatible with shielded or unshielded CAT5e cables with conductors that have a maximum insulated diameter of 0.041". The single piece design uses a feed-thru style cable preparation leaving about 1" of conductors exposed to feed-thru the plug prior to termination. An additional step requires the foil be folded back over the jacket, or drain wire wrapped, to ensure conductivity with the plug shield.
