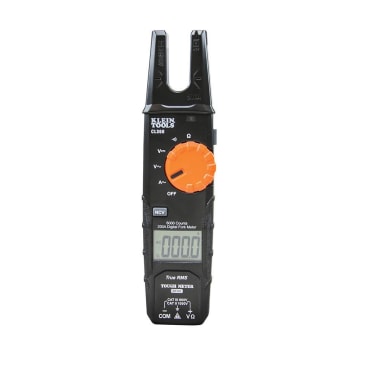

KLEIN CL360 OPEN JAW FORK METER 200A AC

MFR Part #: CL360
SKU #: 1136452
Brand: Klein®
UPC: 092644691140
Klein® CL360 AC Auto-Ranging Open Jaw Fork Meter, 600 VAC/1000 VDC, 200 A, 60 MOhm, 0.58 in Jaw, LCD Display
This product may be subject to ecological fees.
(1) Carrying Case, (1) Test Leads and (2) AAA Batteries
For measuring AC current, AC/DC voltage, continuity and resistance
CE Certified | cETLus Listed | PROP65: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information

Klein® Open Jaw Fork Meter, AC Auto-Ranging, 600 VAC/1000 VDC, 200 A Electrical Rating, 60 MOhm Resistance, 0.58 in Jaw, 6000 Count, LCD Display, Safety Rating: CAT IV 600 VAC/CAT III 1000 VAC/CAT III 600 VAC/CAT II 1000 VAC/Class 2/Double Insulation, (2) AAA Alkaline Batteries Power Source, 8.39 in L x 2.12 in W x 1.38 in H Dimensions, Plastic

The CL360 is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester.

Product Details

Klein® Open Jaw Fork Meter, AC Auto-Ranging, 600 VAC/1000 VDC, 200 A Electrical Rating, 60 MOhm Resistance, 0.58 in Jaw, 6000 Count, LCD Display, Safety Rating: CAT IV 600 VAC/CAT III 1000 VAC/CAT III 600 VAC/CAT II 1000 VAC/Class 2/Double Insulation, (2) AAA Alkaline Batteries Power Source, 8.39 in L x 2.12 in W x 1.38 in H Dimensions, Plastic

The CL360 is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester.

Attributes

Country Of Origin: China
Counts: 6000
Dimensions: 8.39 in L x 2.12 in W x 1.38 in H
Display Type: LCD
Electrical Ratings: 600 VAC/1000 VDC, 200 A
Jaw Capacity: .58 in
Material: Plastic
Power Source: (2) AAA Alkaline Batteries
Resistance: 60 MOhm
Safety Rating: CAT IV 600 VAC/CAT III 1000 VAC/CAT III 600 VAC/CAT II 1000 VAC/Class 2/Double Insulation
Type: AC Auto-Ranging

Features

  • Powers off automatically after 15 min of non-use to conserve battery life
  • Low battery indicator and easily accessible battery compartment
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light industrial locations
  • Built-in test lead holders
  • Auto power OFF function
  • Non-contact voltage tester integrated into the jaw

Resources

Instruction/Installation Manual
Specification Sheet
