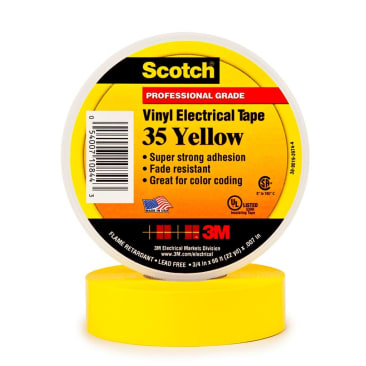

3M 7000006096 Image 1

3M 7000006096 3/4X66FT VINYL COLOUR CODE TAPE 35-3/4X66YL

MFR Part #: 7000006096
SKU #: 1031227
Brand: 3M™ | Scotch®
UPC: 00054007108443
Scotch® 7000006096 Electrical Maintenance Tape, 22 yd L 0.75 in W, 7 mil THK, Vinyl, Rubber Adhesive, PVC Backing, Yellow
For Electrical Maintenance
RoHS Compliant | CSA 2.22 | UL 510 | VDE 0340 TEIL-3-1 | CID A-A-55809B

Scotch®, 7000006096, Tape, Electrical Maintenance, 22 yd Length, 0.75 in Width, 7 mil Thickness, Vinyl, Yellow, Rubber Adhesive, PVC Backing, 6 V, 1255 mV Dielectric Strength, 221 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: CSA Certified/RoHS 211/65/EU/UL Listed/VDE 34-TEIL1

Scotch® Vinyl Electrical Tape 35 is a US-made, professional-grade, nominal 7-mil (0.178 mm) thick, electrical insulating PVC tape. It is available in 10 fade-resistant colors and composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, rubber-based pressure-sensitive adhesive. In accordance with NFPA 70, National Electrical Code–where flame, sunlight and cold resistance is required–this adhesive is best used as primary insulation on applications up to 600V at a maximum temperature of 80 °C (176 °F) and minimum temperature of -10 °C (14 °F) on joints and splices in wires and cables. The tape's color-coded system helps identify cables on cell sites, phase coding, motor leads and piping systems to improve safety on industrial, commercial and residential jobs. ​ UL Listed, CSA Listed, and RoHS and Prop 65 compliant, use Scotch® Vinyl Electrical Tape 35 for critical indoor and outdoor operations where General Vinyl Electrical tape is not recommended.

Product Details

Scotch®, 7000006096, Tape, Electrical Maintenance, 22 yd Length, 0.75 in Width, 7 mil Thickness, Vinyl, Yellow, Rubber Adhesive, PVC Backing, 6 V, 1255 mV Dielectric Strength, 221 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: CSA Certified/RoHS 211/65/EU/UL Listed/VDE 34-TEIL1

Scotch® Vinyl Electrical Tape 35 is a US-made, professional-grade, nominal 7-mil (0.178 mm) thick, electrical insulating PVC tape. It is available in 10 fade-resistant colors and composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, rubber-based pressure-sensitive adhesive. In accordance with NFPA 70, National Electrical Code–where flame, sunlight and cold resistance is required–this adhesive is best used as primary insulation on applications up to 600V at a maximum temperature of 80 °C (176 °F) and minimum temperature of -10 °C (14 °F) on joints and splices in wires and cables. The tape's color-coded system helps identify cables on cell sites, phase coding, motor leads and piping systems to improve safety on industrial, commercial and residential jobs. ​ UL Listed, CSA Listed, and RoHS and Prop 65 compliant, use Scotch® Vinyl Electrical Tape 35 for critical indoor and outdoor operations where General Vinyl Electrical tape is not recommended.

Attributes

Adhesion Strength20 in-oz
Adhesive MaterialRubber
Backing MaterialPVC
ColorYellow
Country Of OriginUS
Dielectric Strength1255 mV
Length22 yd
Material TypeVinyl
Maximum Operating Temperature221 deg F
Minimum Operating Temperature32 deg F
Specifications MetCSA Certified/RoHS 211/65/EU/UL Listed/VDE 34-TEIL1
Tensile Strength17 in-lb
Thickness7 mil
TypeElectrical Maintenance
Voltage Rating6 V
Width.75 in

Features

  • MULTIPLE COLOR OPTIONS - Available in 10 fade-resistant colors
  • MULTI-CLIMATE USE - Resistant to abrasion, moisture, alkalis, acids, corrosion and varying weather conditions
