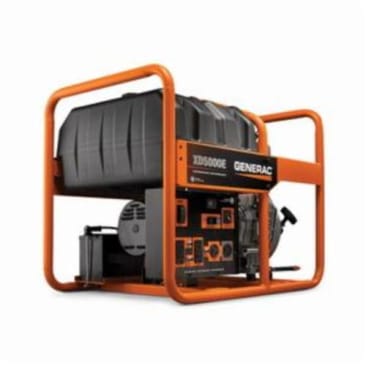

GENERAC 6864 50ST PORTABLE DIESEL GENERATOR

MFR Part #: 6864
SKU #: 1301923
Brand: Generac®
UPC: 400052221291
Generac® 6864 XD5000E Portable Generator, 120/240 V AC, 41.7 A, 5500 W Starting/5000 W Running Power Rating, Air Cooled, 4 Cycle, Vertical Cylinder Engine, 3600 rpm Speed
For job sites and day long events
CARB Compliant|PROP65: Operating, servicing and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your equipment in a well ventilated area and wear gloves or wash your hands frequently when servicing your equipment. For more information go to www.P65Warnings.ca.gov

Generac® Portable Generator, Series: XD5000E, 120/240 V AC, 41.7 A, 60 Hz, 5500 W Starting/5000 W Running, Air Cooled, 4 Cycle, Vertical Cylinder Engine, Engine Specifications: 435 cc Displacement, Electric/Recoil Pull Engine Starter, 3600 rpm, Diesel, 45.4 gal Fuel Tank, 32.4 hr Run

No Job Too Tough. No Workday Too Long. If you've got a tough job to do, look no further than the XD5000E generator. The sturdy steel frame features an integrated lifting eye for easy transport and on-site security. 6% total harmonic distortion for smooth operation of tools, appliances, even sensitive electronics. And it's engineered to keep on running, thanks to its large fuel tank.

Product Details

Generac® Portable Generator, Series: XD5000E, 120/240 V AC, 41.7 A, 60 Hz, 5500 W Starting/5000 W Running, Air Cooled, 4 Cycle, Vertical Cylinder Engine, Engine Specifications: 435 cc Displacement, Electric/Recoil Pull Engine Starter, 3600 rpm, Diesel, 45.4 gal Fuel Tank, 32.4 hr Run

No Job Too Tough. No Workday Too Long. If you've got a tough job to do, look no further than the XD5000E generator. The sturdy steel frame features an integrated lifting eye for easy transport and on-site security. 6% total harmonic distortion for smooth operation of tools, appliances, even sensitive electronics. And it's engineered to keep on running, thanks to its large fuel tank.

Attributes

Amperage Rating: 41.7 A
Engine Specifications: 435 cc Displacement
Engine Starter Type: Electric/Recoil Pull
Engine Type: Air Cooled, 4 Cycle, Vertical Cylinder
Frequency Rating: 60 Hz
Fuel Tank Capacity: 45.4 gal
Fuel Type: Diesel
Power Rating: 5500 W Starting/5000 W Running
Run Time: 32.4 hr
Series: XD5000E
Speed: 3600 rpm
Voltage Rating: 120/240 V AC

Features

  • Yanmar LW Series 435cc air-cooled direct injection, EPA tier IV, industrial-grade engine
  • Large capacity 12 gal fuel tank with fuel gauge provides a long run time of 32.4 hrs at 50% load
  • Compression release lever provides easier starting during cold ambient temperatures
  • Low-oil pressure shutdown automatically safeguards engine from damage
  • Fuel primer bulb provides quicker starts when the fuel tank has previously run empty
  • Durable, fully welded 1-1/4 in steel frame
  • Integrated lifting eye provides easy transport t and security on the jobsite
  • 120/240 V selector switch provides full 120 V power
  • Single touch electric start provides hassle-free start-up (battery not included)
  • Hour meter with maintenance resets tracks usage and monitors maintenance cycles
  • TruePower™ technology provides less than 5% total harmonic distortion for clean, smooth operation of sensitive electronics, tools and appliances
  • SAE 10W-30 recommended oil
  • 33.1 in L x 22-1/2 in W x 25.6 in H
  • 35-3/4 in L extended
  • 41.7 A/20.8 A rated
  • Diesel power requires less maintenance, is more efficient, and provides a long life

Resources

Catalog
Specification Sheet
