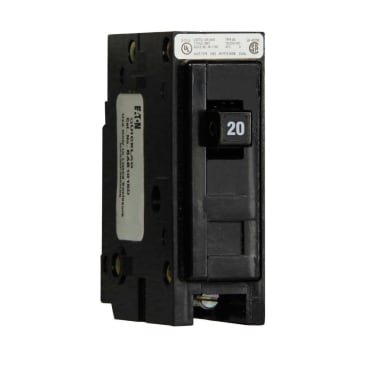

EATON BAB1020 BAB 20A 1-POLE 10KAIC INDUSTRIAL THERMAL MAGNETIC CIRCUIT BREAKER

MFR Part #: BAB1020
SKU #: 0711451
Brand: EATON
UPC: 786685335186
EATON QuickLag® BAB1020 Type BAB Miniature Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Datacenters, IT Space, CI and Hyper Converged, Generation - Conventional Energy, Renewable Energy, Alternative Energy, Marine Vessels and Equipment, Residential Buildings and Facilities, Circuit Protection and Industrial Applications
CSA Certified | HACR Rated | UL 489

EATON QuickLag® Miniature Circuit Breaker, Type BAB, 120/240 V AC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Steel Box Lug Connection, 14 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in L x 1 in W x 2-1/2 in H Dimensions

Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.

Product Details

EATON QuickLag® Miniature Circuit Breaker, Type BAB, 120/240 V AC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Steel Box Lug Connection, 14 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in L x 1 in W x 2-1/2 in H Dimensions

Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.

Attributes

Amperage Rating: 20 A
Country Of Origin: Dominican Republic
Number of Poles: 1
Connection Type: Steel Box Lug
Dimensions: 3 in L x 1 in W x 2-1/2 in H
Frequency Rating: 50/60 Hz
Interrupt Rating: 10 kA
Mounting Type: Bolted-On
Phase: 1
Temperature Rating: 40 deg C
Trip Type: Thermal Magnetic
Type: Type BAB
Voltage Rating: 120/240 V AC
Wire Size: 14 to 4 AWG

Features

  • Flexible power feed connection (wire size and position) offers product uniformity as well as ease of installation
  • Field mountable accessories make installation and on-site custom configuration easy
  • Compact designs available to minimize panel size
  • Switching duty rated for 120 VAC fluorescent light applications
