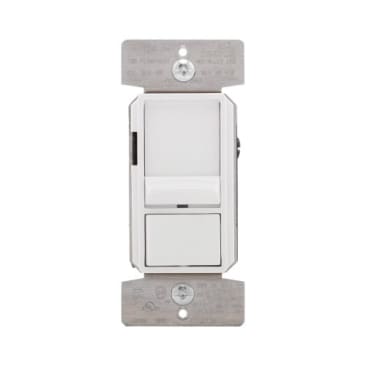

COOPER B-LINE SAL06P2-W DIMMER 1P/3W 300W CFL INCD HAL MLV
MFR Part #: SAL06P2-W
SKU #: 1136112
Brand: B-Line
UPC: 032664749209
Please note this item is discontinued (order fulfillment will depend on stock availability): EATON SAL06P2-W AL Series Preset Slide Dimmer, 120 V AC, 1 Poles, 3-Way On/Off Operation, White
cULus Listed | NOM Certified | UL 94 Flammability Rated
Product Details
Attributes
Features
EATON Slide Dimmer, Preset, Series: AL Series, 120 V AC, 300 W Power, 60 Hz Frequency, 1 Pole, CFL/LED Lamp, Rapid Start, Operation Mode: 3-Way On/Off, Back/Side Wired Terminal, -4 to 158 deg F, Polycarbonate, White, 1.8 in W x 1.26 in D x 4.2 in H Dimensions
Color:White
Dimensions:1.8 in W x 1.26 in D x 4.2 in H
Frequency Rating:60 Hz
Lamp Type:CFL/LED
Material:Polycarbonate
Number of Poles:1
Operation Mode:3-Way On/Off
Power Rating:300 W
Series:AL Series
Start Type:Rapid
Temperature Rating:-4 to 158 deg F
Terminal Type:Back/Side Wired
Type:Preset
Voltage Rating:120 V AC
- Preset feature allows user to return to previous light level when turning lights on
- Integrated full-slide control for easy, precise operation
- Device can be wired into either 3-way location (load side or line side)
- Neutral is not required for installation of device
- Adjustable low-level trim setting for optimal lamp compatibility
- Radio frequency interference filtering is standard on all models
- Electrostatic discharge protection
- Precise color matching
- Compatible with any decorator wallplate or screwless decorator wallplate
- Compatible with most common dimmable lighting loads (phase-cut)
- Adjustable rapid start feature ensures lamp start-up even at low dim levels
Product Details
EATON Slide Dimmer, Preset, Series: AL Series, 120 V AC, 300 W Power, 60 Hz Frequency, 1 Pole, CFL/LED Lamp, Rapid Start, Operation Mode: 3-Way On/Off, Back/Side Wired Terminal, -4 to 158 deg F, Polycarbonate, White, 1.8 in W x 1.26 in D x 4.2 in H Dimensions
Attributes
Color: White
Dimensions: 1.8 in W x 1.26 in D x 4.2 in H
Frequency Rating: 60 Hz
Lamp Type: CFL/LED
Material: Polycarbonate
Number of Poles: 1
Operation Mode: 3-Way On/Off
Power Rating: 300 W
Series: AL Series
Start Type: Rapid
Temperature Rating: -4 to 158 deg F
Terminal Type: Back/Side Wired
Type: Preset
Voltage Rating: 120 V AC
Features
- Preset feature allows user to return to previous light level when turning lights on
- Integrated full-slide control for easy, precise operation
- Device can be wired into either 3-way location (load side or line side)
- Neutral is not required for installation of device
- Adjustable low-level trim setting for optimal lamp compatibility
- Radio frequency interference filtering is standard on all models
- Electrostatic discharge protection
- Precise color matching
- Compatible with any decorator wallplate or screwless decorator wallplate
- Compatible with most common dimmable lighting loads (phase-cut)
- Adjustable rapid start feature ensures lamp start-up even at low dim levels
