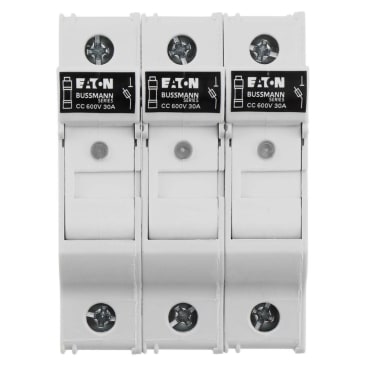

BUSSMAN CHCC3DIU Image 1

BUSSMAN CHCC3DIU 3 POLE FUSE HOLDER DIN RAIL MOUNT

MFR Part #: CHCC3DIU
SKU #: 1123876
Brand: Bussmann
UPC: 051712362702
Bussmann CHCC3DIU Finger Safe Modular Fuse Holder With Indicator, 600 V, 30 A, 18 to 4 AWG Wire, 3 Poles
Protects Electrical System, Electrical Assemblies, Panels and OEMs Applications
CCC Certified | CSA 47235 | CSA 6225-01 | RoHS Compliant | UL E14853 | UL Guide IZLT/IZLT2

Bussmann Fuse Holder, Finger Safe Modular, Series: CH Series, 600 V, 30 A, 3 Pole, 1/3, Class: CC, Fuse Holder Code: W, Spade Lug, 18 to 4 AWG Wire, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: KTK-R/LP-CC/FNQ-R Series CC Fuse, Polyester, White, 2.067 in W x 3.275 in D x 2.909 in H

Bussmann series Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection.

Product Details

Bussmann Fuse Holder, Finger Safe Modular, Series: CH Series, 600 V, 30 A, 3 Pole, 1/3, Class: CC, Fuse Holder Code: W, Spade Lug, 18 to 4 AWG Wire, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: KTK-R/LP-CC/FNQ-R Series CC Fuse, Polyester, White, 2.067 in W x 3.275 in D x 2.909 in H

Bussmann series Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection.

Attributes

Country Of OriginChina
Amperage Rating30 A
ClassCC
ColorWhite
Connection TypeSpade Lug
Dimensions2.067 in W x 3.275 in D x 2.909 in H
Fuse Diameter10 mm
Fuse Holder CodeW
Fuse Length38 mm
MaterialPolyester
Mounting TypeDIN Rail
Number of Phases1/3
Number of Poles3
SeriesCH Series
Suitable For Use WithKTK-R/LP-CC/FNQ-R Series CC Fuse
Temperature Rating-20 to 90 deg C
TypeFinger Safe Modular
Voltage Rating600 V
Wire Size18 to 4 AWG

Features

  • Easy color coding for use yellow for PV, red for IEC and black for UL applications
  • Agency ratings up to 1000 VDC for use with solar PV fuses
  • Rated for use with 75 deg C or 90 deg C wire, fine stranded wire, spade terminals and combination busbars
  • Use any higher temperature rated wire with appropriate derating
  • Complete range of UL listed and high SCCR rated 1/3 ph finger safe combination busbars and power feed lugs
  • Enhanced safety with IP20 finger safe construction
