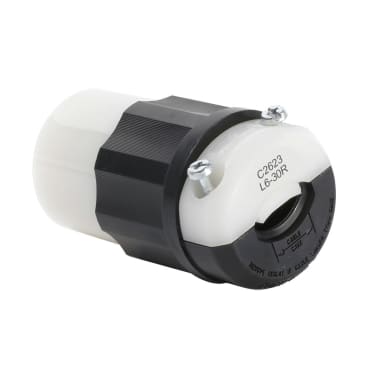

LEVITON C2623 Image 1

LEVITON C2623 30A 250V 2-POLE 3-WIRE LOCKING CONNECTOR EBONY

MFR Part #: C2623
SKU #: 0777450
Brand: Leviton®
UPC: 078477811139
Leviton® C2623 1-Phase Cable Mount Grounding Locking Connector, 250 V AC, 30 A, 2 Poles, 3 Wires, Black/White
Lifetime
Industrial Applications
ANSI C-73 | CSA File No. LR-406 Certified | NEMA WD-1/WD-6 | UL 498 File No. E13393 | UL94 V-2 Flammability Rating | ANSI C73 | CSA File No. LR406 | NOM 057 Certified | Federal Specification WC-596 | File E13393 Listed

Leviton®, C2623, Locking Connector, 1-Phase Cable Mount Grounding, 250 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, NEMA L6-30R NEMA Rating, Industrial Grade, 0.385 to 0.93 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 28 in Dia x 3.53 in L Dimensions

Leviton® industry leading locking devices, such as our black and white line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Product Details

Leviton®, C2623, Locking Connector, 1-Phase Cable Mount Grounding, 250 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, NEMA L6-30R NEMA Rating, Industrial Grade, 0.385 to 0.93 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 28 in Dia x 3.53 in L Dimensions

Leviton® industry leading locking devices, such as our black and white line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Attributes

Amperage Rating: 30 A
Country Of Origin: Mexico
Color: Black/White
Cord Diameter: 0.385 to 0.93 in
Dimensions: 28 in Dia x 3.53 in L
Grade: Industrial
Horsepower: 2 hp
Material: Nylon
NEMA Rating: NEMA L6-30R
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Terminal Type: Screw
Type: 1-Phase Cable Mount Grounding
Voltage Rating: 250 V AC

Features

  • Super tough nylon body resists damage from severe impact, abrasion and chemicals
  • Ergonomic, fluted body design with radial grip ridge is ideal for gripping, turning and pulling
  • Cord clamp does not have to be disassembled from body for wiring - accepts wire mesh connection strain reliefs
  • 1-piece, rivetless 0.035 in THK brass connector contacts and solid brass plug blades provide maximum conductivity and long service life
  • Power Indication™ 20 and 30 a locking plugs and connectors equipped with green LED rated at 100000 hr (24/7 for 10 years)
