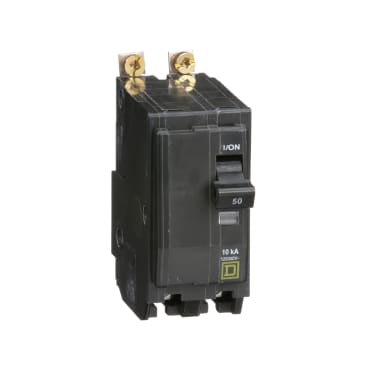

SQUARE D QOB250 BOLT-IN 2 POLE 50 AMP BREAKER QOB
Product Details
Attributes
Features
Resources
Square D™, QOB250, Miniature Circuit Breaker, Standard, 120/240 VAC, 50 A, 50/60 Hz Frequency, 10 kA Interrupt, QOB Frame, Thermal/Magnetic Trip, 2 Pole, 1 ph, Box Lug Connection, 8 to 2 AWG Wire, Bolt-On Mounting, 104 deg F, 2.91 in L x 1.5 in W x 3 in H Dimensions
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 50A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously
- Bolt-on QOB circuit breakers are for use in NQO and NQOD panel boards
- QO™ and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit
- Common trip
- 10 kA at 120/240 VAC, 5 kA at 48 VDC interrupt rating
- 8 to 2 AWG Al/Cu wire
- Standard
