LITELINE LC-CRTL-DIM-1 Image 1
LITELINE LC-CRTL-DIM-1 Image 2
LITELINE LC-CRTL-DIM-1 Image 3
content loaded
LITELINE LC-CRTL-DIM-1 Image 1

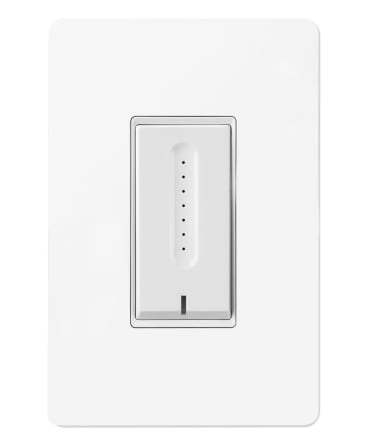

LITELINE LC-CRTL-DIM-1 LITECONNECT DIM SWITCH WIFI ON/OFF

MFR Part #: LC-CRTL-DIM-1
SKU #: 1246222
Brand: Liteline
UPC: 771250036261
Liteline LC-CRTL-DIM-1 Wi-Fi Dimmer, 400 W, 3.3 A, 120 VAC, Fluorescent, Incandescent, LED Lamp, Polycarbonate
3 Year
cULus Listed | IEEE 802.11 b

Liteline Wi-Fi Dimmer, 120 VAC, 3.3 A, 60 Hz, 400 W, 1 Pole, Fluorescent, Incandescent, LED Lamp, Wi-Fi Connectivity Type, 23 to 113 deg F Operating, Polycarbonate, 1-5/16 in Length, 3-5/16 in Width, 5-1/16 in Height, Additional Information: 2.4 GHz Wireless Frequency

The OnCloud smart Wi-Fi dimmer works with any 120 V dimmable bulb or fixture. Works in single pole applications.

Product Details

Liteline Wi-Fi Dimmer, 120 VAC, 3.3 A, 60 Hz, 400 W, 1 Pole, Fluorescent, Incandescent, LED Lamp, Wi-Fi Connectivity Type, 23 to 113 deg F Operating, Polycarbonate, 1-5/16 in Length, 3-5/16 in Width, 5-1/16 in Height, Additional Information: 2.4 GHz Wireless Frequency

The OnCloud smart Wi-Fi dimmer works with any 120 V dimmable bulb or fixture. Works in single pole applications.

Attributes

Additional Information: 2.4 GHz Wireless Frequency
Amperage Rating: 3.3 A
Connectivity Type: Wi-Fi
Frequency Rating: 60 Hz
Height: 5-1/16 in
Lamp Type: Fluorescent, Incandescent, LED
Length: 1-5/16 in
Material: Polycarbonate
Number of Poles: 1
Operating Temperature: 23 to 113 deg F
Voltage Rating: 120 VAC
Wattage: 400 W
Width: 3-5/16 in

Features

  • Durable polycarbonate body with snap-on faceplate
  • The smart Wi-Fi dimmer provides a maximum output of 400 W for incandescent bulbs and 150 W for fluorescent and LED bulbs
  • Features an On/Off press and a seven-level touch slider for dimming functionality
  • The smart Wi-Fi dimmer installs just like a regular dimmer
  • The smart Wi-Fi dimmer is can be controlled via the WiZ app (works with iOS and Android) from anywhere
  • Voice control can also be achieved by integrating the app with most smart speakers
  • Works with Google Assistant, Siri, Alexa and IFTTT

Resources

Instruction/Installation Manual
Specification Sheet
