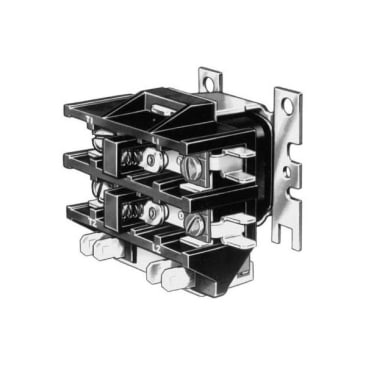

HONEYWELL R8246A1038/U 24VAC 56KW ELECTRIC HEAT CONTACTOR
MFR Part #: R8246A1038/U
SKU #: 1110173
Brand: Honeywell
UPC: 085267081115
Resideo R8246A1038/U 2-Pole Electric Heating Relay, 24 VAC Coil
Furnaces with a line voltage or Ppilot duty limit
Product Details
Attributes
Features
Resources
Resideo Electric Heating Relay, 2-Pole, 24 VAC Coil, -4 to 149 deg F, 2-5/16 in W x 3-5/16 in D x 2-3/16 in H
Provide conventional on-off control of heating elements and fan in an electric furnace.
Coil Voltage:
24 VAC
Country Of Origin:
Mexico
Dimensions:
2-5/16 in W x 3-5/16 in D x 2-3/16 in H
Temperature Rating:
-4 to 149 deg F
Type:
2-Pole
- NEMA standard Type D transformer (included) powers 24VAC control systems
- Provides overload protection for transformer
- Convenient connections for thermostat and heating and cooling equipment wiring
- Mounts on standard 4 x 4 junction box
- Can be mounted in any indoor location without additional enclosure
- Relay is easily replaced without disturbing wiring
- Electrical ratings: 12 W maximum
- 50/60 Hz frequency
- 40 VA, 26.5 V secondary supply
- 120 VAC, 3/4 hp
- 20 VA max inrush, 9 VA sealed coil rating
Product Details
Resideo Electric Heating Relay, 2-Pole, 24 VAC Coil, -4 to 149 deg F, 2-5/16 in W x 3-5/16 in D x 2-3/16 in H
Provide conventional on-off control of heating elements and fan in an electric furnace.
Attributes
Coil Voltage: 24 VAC
Country Of Origin: Mexico
Dimensions: 2-5/16 in W x 3-5/16 in D x 2-3/16 in H
Temperature Rating: -4 to 149 deg F
Type: 2-Pole
Features
- NEMA standard Type D transformer (included) powers 24VAC control systems
- Provides overload protection for transformer
- Convenient connections for thermostat and heating and cooling equipment wiring
- Mounts on standard 4 x 4 junction box
- Can be mounted in any indoor location without additional enclosure
- Relay is easily replaced without disturbing wiring
- Electrical ratings: 12 W maximum
- 50/60 Hz frequency
- 40 VA, 26.5 V secondary supply
- 120 VAC, 3/4 hp
- 20 VA max inrush, 9 VA sealed coil rating
